MIL-R-83726/7E
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.010 (0.25 mm) for three place decimals and ±.03 (0.8 mm) for two place decimals.
3. Metric equivalents are given for general information only.
4. Terminal numbers shall not appear on the relay header and there shall be affixed to the relay a permanent legible schematic diagram that identifies each terminal location specified.

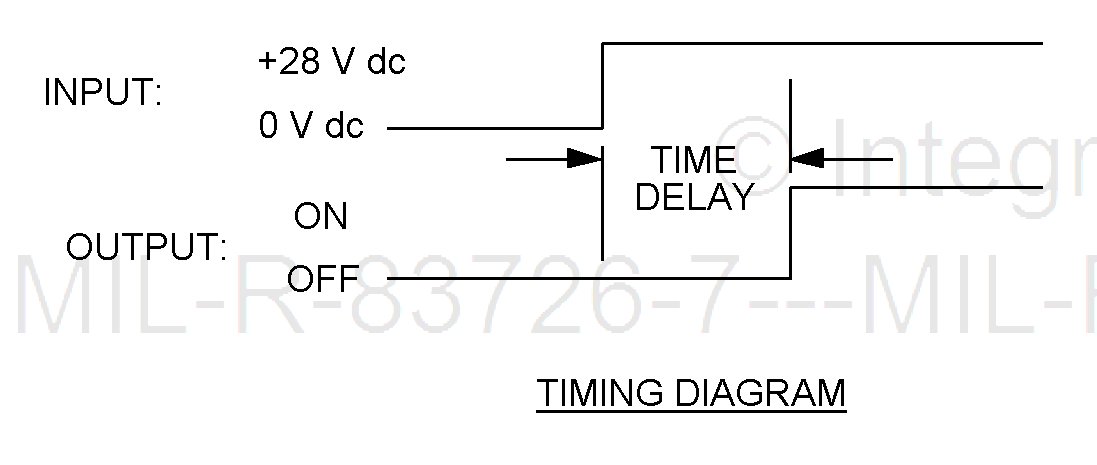

FIGURE 1. Outline dimensions and configuration of relay - Continued.
TABLE I. Available time delay relays. 1/
Dash number |
Time delay seconds ±10% |
Dash number |
Time delay seconds ±10% |
Dash number |
Time delay seconds ±10% |
Dash number |
Time delay seconds ±10% |
-0600 -1000 -5000 -7500 -1001 -2001 -3001 -4001 -5001 -6001 -7001 -8001 -9001 -1002 |
.060 .100 2/ .500 .750 1 2 3 4 5 6 7 8 9 10 |
-1202 -1402 -1602 -1802 -2002 -2202 -2502 -3002 -3502 -4002 -4502 -5002 -5502 -6002 |
12 14 16 18 20 22 25 30 35 40 45 50 55 60 |
-6502 -7002 -7502 -8002 -8502 -9002 -9502 -1003 -1103 -1203 -1303 -1403 -1503 -1603 |
65 70 75 80 85 90 95 100 110 120 130 140 150 160 |
-1703 -1803 -1903 -2003 -2103 -2203 -2303 -2403 -2503 -2603 -2703 -2803 -2903 -3003 |
170 180 190 200 210 220 230 240 250 260 270 280 290 300 |
1/ Additional time delay relays within the 0.60- to 300 second delay range are available. To establish Part or Identifying Numbers (PIN's) not listed in table I (see "PIN" herein).
2/ Add ±10 milliseconds to ±10 percent tolerance.
2
