MILITARY SPECIFICATION SHEET
RELAYS, HYBRID, TIME DELAY, ON PICKUP, TYPE I, CLASS A, 2 AMPERES, 2PDT, FIXED TIME,
0.06 TO 300 SECONDS
INCH-POUND MIL-R-83726/7E
05 January 2009
SUPERSEDING MIL-R-83726/7D
7 July 2005
Inactive for new design after 22 July 1992. Refer to MIL-PRF-83726/28 for new design.
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and MIL-PRF-83726.

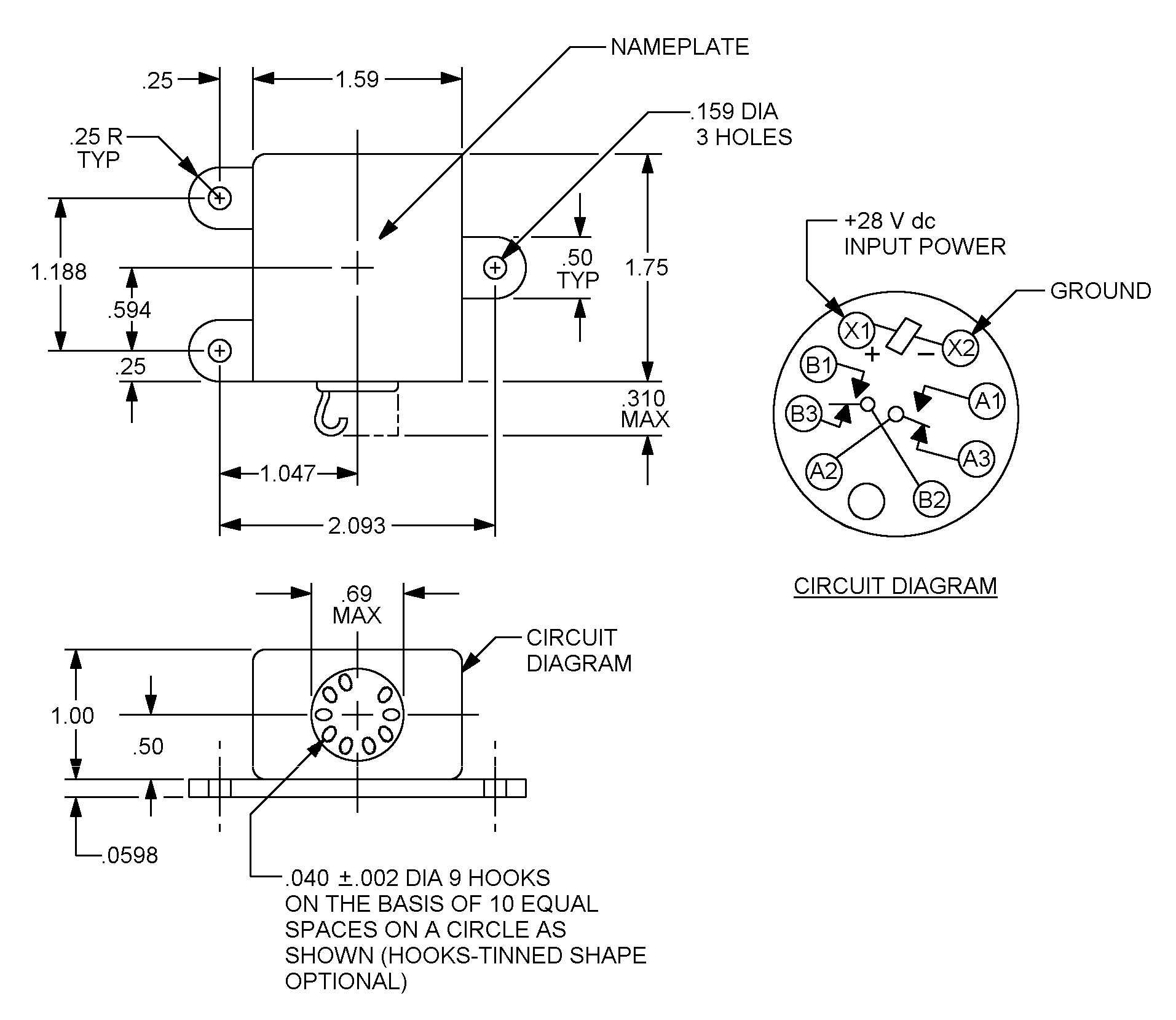

FIGURE 1. Outline dimensions and configuration of relay.
AMSC N/A FSC 5945
