MIL-PRF-6106/13F
NOTES:
1. There shall be affixed to the relay a suitable legible circuit diagram that identifies each terminal location
specified.
2. DC versions of this relay must not operate or be damaged by reverse polarity, semiconductors shall not be
used for this purpose.
3. Coil polarity not applicable to AC versions -003, -004, -012, and -013.
4. When semiconductors are required, JANTX or equivalent screened semiconductors shall be used. Relays
using suppression devices shall continue to operate should the suppression circuit be in a failure mode.
Diodes shall have a peak inverse voltage of 600 V dc minimum.

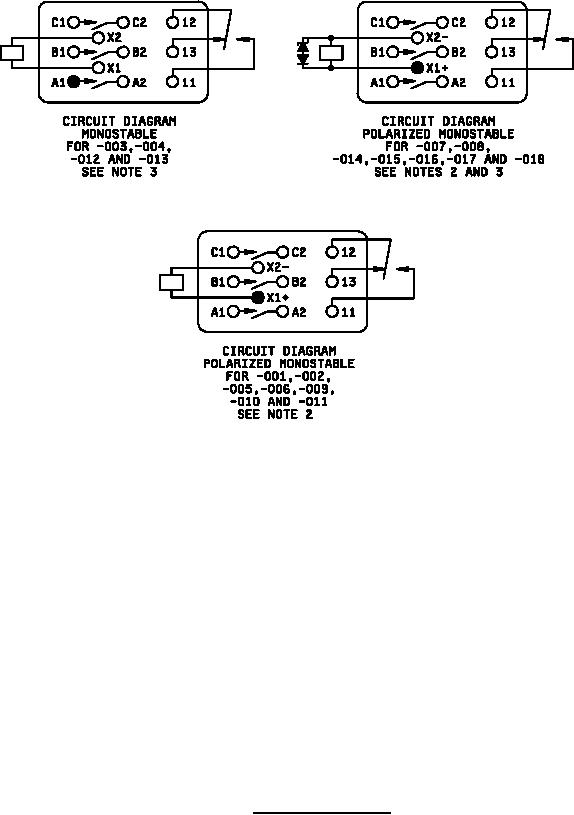

FIGURE 7. Relay, circuit diagrams.
