MIL-PRF-6106/13F
NO MOUNT 4 AND TERMINAL LAYOUT FOR -010, -011, -012, -013, -014, AND -015.
Inches
mm
Inches
mm
.001
0.03
.234
5.94
.002
0.05
.300
7.62
.003
0.08
.432
10.97
.062
1.57
.450
11.43
.093
2.36
.600
15.24
.117
2.97
.630
16.00
.150
3.81
1.010
25.65
1.025
26.04
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (.25 mm).

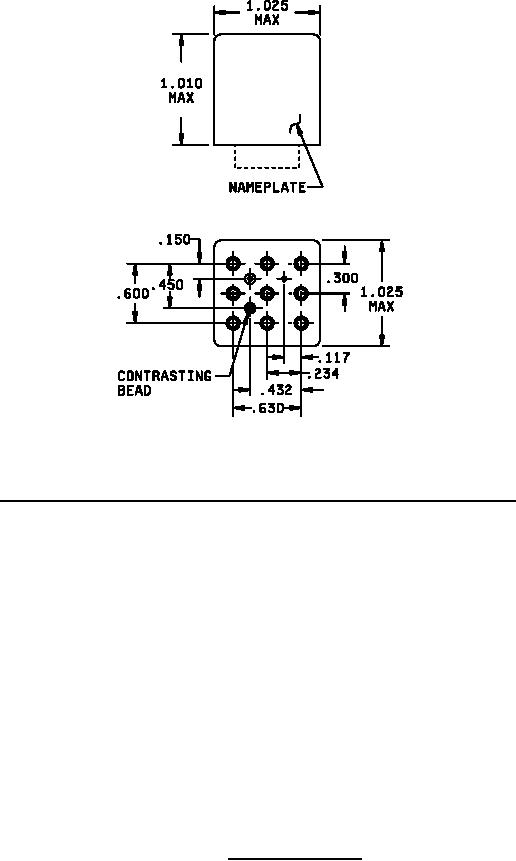

FIGURE 4. Relay, outline drawing.
