MIL-PRF-6106/13F
SOLDER PIN TERMINALS
Inches
mm
Inches
mm
Inches
mm
.000
0.00
.020
0.51
.250
6.35
.001
0.03
.040
1.02
.270
6.86
.002
0.05
.050
1.27
.300
7.62
.003
0.08
.062
1.57
.375
9.52
.005
0.13
.093
2.36
.625
15.88
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (0.25 mm).
4. Hook terminals will accept (1) one number 12 AWG stranded wire.
5. Socket pin terminals shall provide the operational, environmental, and interface characteristics to provide a
reliable interconnect to gold-plated contacts. Terminals shall be gold plated, except the polarizing pin. One
system for gold plating that may be used is ASTM B488, type 3, class 1.25 with a nickel underplate of 50 to
150 microinches thick. The gold plating system shall enable the product to meet the performance
requirements of this specification and shall be approved by the qualifying activity.
6. Gasket shall provide a reliable seal between the relay and mating socket that will meet the environmental,
operational, and interface requirements of the relay with the mating socket. The gasket shall have shore
hardness 20 5, thickness .050 .005. Gasket material according to SAE-AMS3332 has been considered
acceptable.

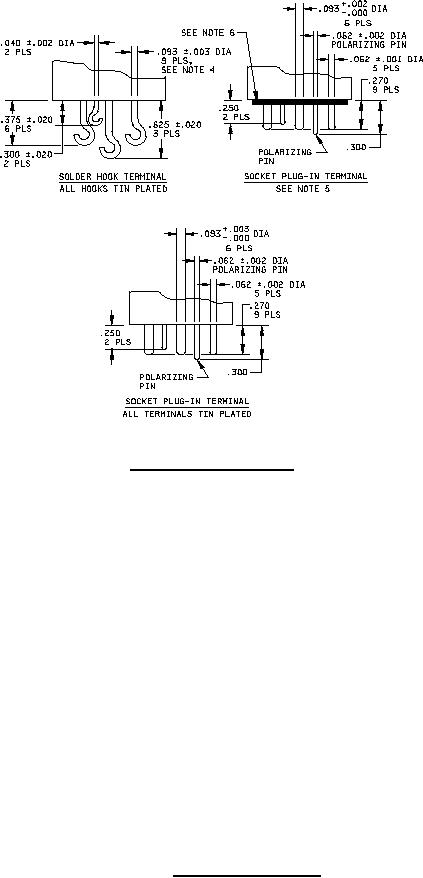

FIGURE 5. Relay, termination styles.
6
