MIL-PRF-6106/13F
HORIZONTAL FLANGE MOUNT 3 AND TERMINAL LAYOUT FOR 006, -009 AND 018.
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.150
3.81
.625
15.88
.002
0.05
.234
5.94
.630
16.00
.003
0.08
.300
7.62
.937
23.80
.040
1.02
.312
7.92
1.010
25.65
.062
1.57
.432
10.97
1.025
26.04
.093
2.36
.450
11.43
1.396
35.46
.117
2.97
.600
15.24
1.446
36.73
1.718
43.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (.25 mm).

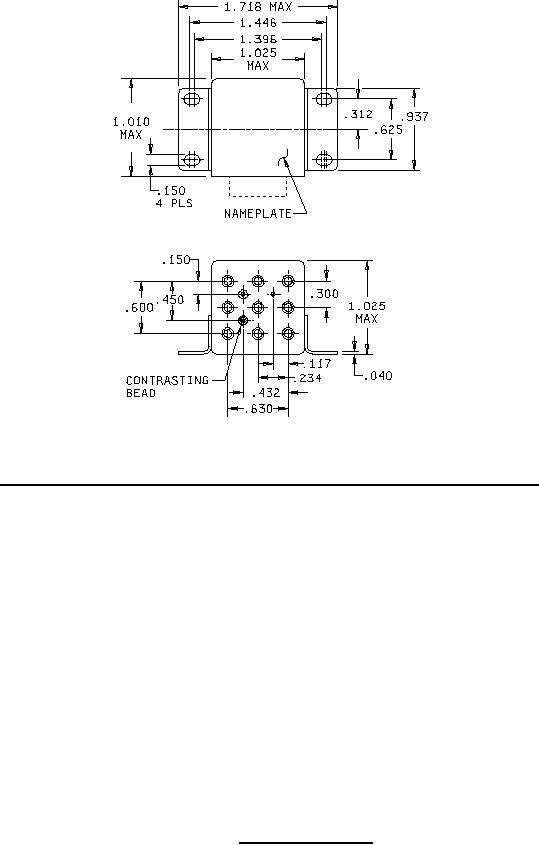

FIGURE 3. Relay, outline drawing.
4
