MIL-PRF-39016/53C
Inches
mm
Inches
mm
.001
0.03
.100
2.54
.002
0.05
.150
3.81
.003
0.08
.187
4.75
.005
0.13
.300
7.62
.015
0.38
.320
8.13
.020
0.51
.450
11.43
.030
0.76
.500
12.70
.050
1.27
.610
15.49
.080
2.03
.850
21.59
.094
2.39
1.062
26.97
.096
2.44
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal locating dimensions shown are applicable to all type mounts.
5. Terminal numbers in circuit diagram are for reference only. Numbers do not appear on relay.
6. Indicated terminal shall be identified with contrasting band.
7. The shape of lug terminals is optional.
8. Coil symbol is optional in accordance with MIL-STD-1285.
9. Finish: Finish shall provide the operational, environmental, and interface characteristics to provide a
reliable interconnect to gold plated contacts. One system for gold plating that may be used is ASTM B488,
type 3, class 1.25, knoop hardness 130 to 240, nickel underplate 50 to 150 microinches thick. The gold
plating shall enable the product to meet the performance requirements of this specification and shall be
approved by the qualifying activity.

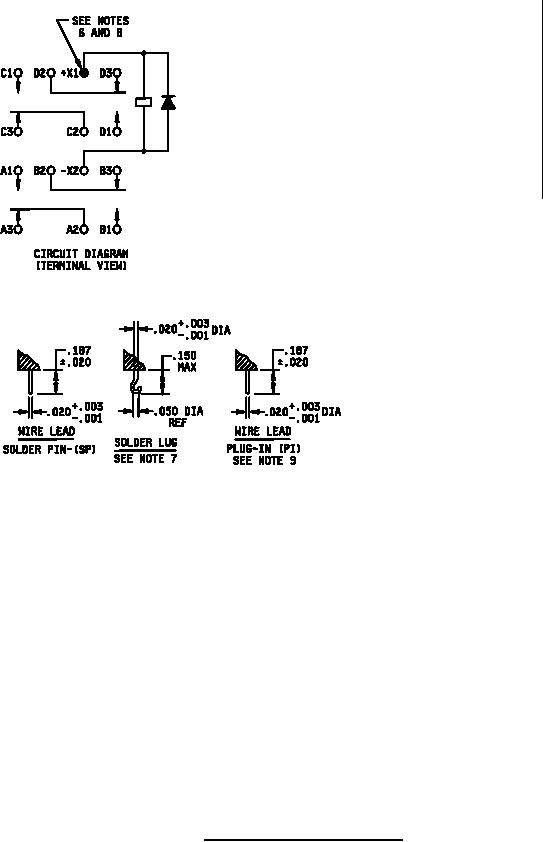

FIGURE 1. Configuration and circuit diagram - Continued.
