INCH-POUND
DETAIL SPECIFICATION SHEET
MS25468L
27 November 2003
SUPERSEDING MS25468K
14 February 2001
RELAYS, ELECTROMAGNETIC, 10 AMPERES, 4 PDT, TYPE I, MAGNETIC LATCH, SOLDER TERMINALS, STUD MOUNTED, HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 29 FEBRUARY 2000
NO SUPERSEDING SPECIFICATION.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

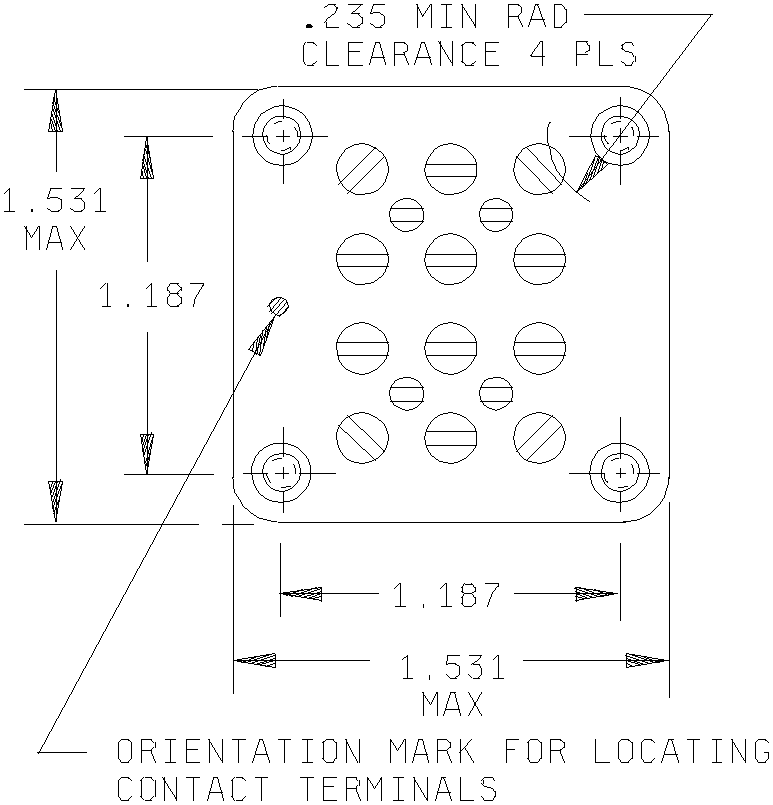

FIGURE 1. Design, dimensions, and circuit diagrams.
AMSC N/A 1 of 5 FSC 5945
