INCH-POUND
MIL-R-83726/14D
7 July 2005
SUPERSEDING
MIL-R-83726/14C(USAF)
25 June 1993
DETAIL SPECIFICATION SHEET
RELAYS, HYBRID, TIME DELAY, (ON OPERATE), TYPE I, CLASS B,
10 AMPERES, 4PDT, HERMETICALLY SEALED, FIXED TIME, 0.100 TO 300 SECONDS
Inactive for new design after 25 June 1993. For new design, use MIL-PRF-83726/28.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and MIL-PRF-83726.

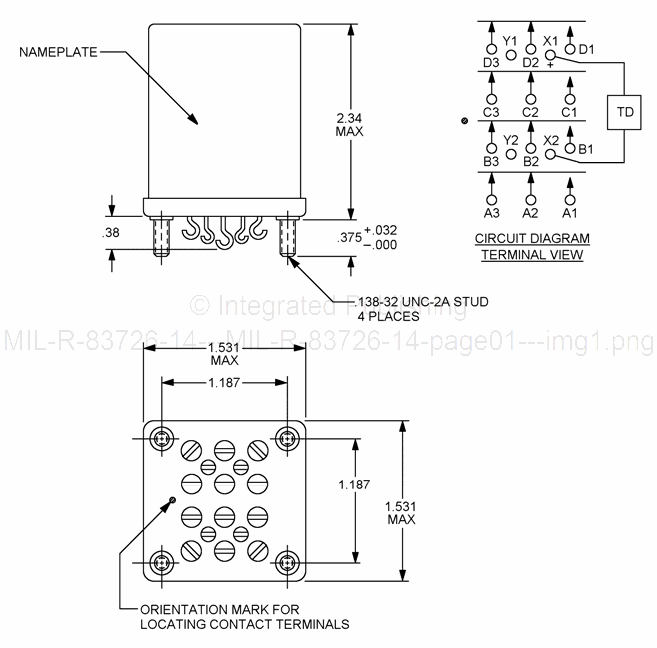

FIGURE 1. Outline dimensions and configuration of relay.
AMSC N/A FSC 5945
