INCH-POUND
MIL-PRF-83726/31J
27 February 2013
SUPERSEDING
MIL-PRF-83726/31H
18 June 2012
PERFORMANCE SPECIFICATION SHEET
RELAY, HYBRID, TIME DELAY (ON RELEASE), CLASS B, TYPE IIA,
HERMETICALLY SEALED, DPDT, 10 AMPERES, ADJUSTABLE TIME
DELAY (EXTERNAL RESISTOR), 0.1 TO 500 SECONDS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-83726.

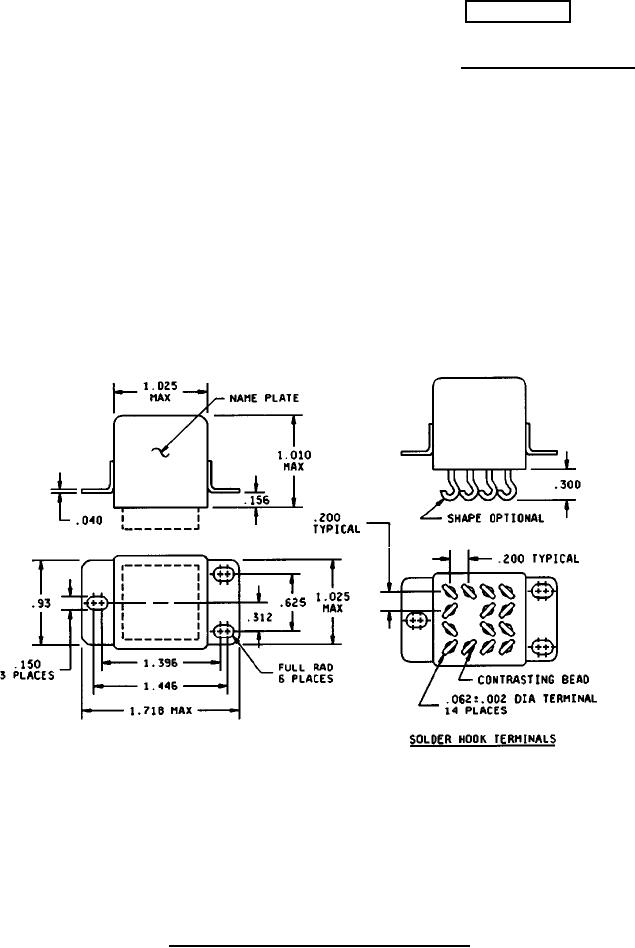

FIGURE 1. Outline dimensions and configuration of relay.
AMSC N/A
FSC 5945
