MIL-PRF-83536-10 Relays, Electromagnetic, Established Reliability, Dpdt, Low Lever To 10 Amperes, Permanent Magnet Drive, Hermetically Sealed, All Welded, Transient Suppressed Dc Coils

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11


MIL-PRF-83536/10C
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
1.396
1.416
35.46
35.97
B
1.052
1.072
26.72
27.23
C
.155
.161
3.94
4.09
D
.052
.072
1.32
1.83
E
.162
.182
4.11
4.62
F
.271
.291
0.65
7.39
G
.552
.572
14.02
14.53
H
1.396
1.416
35.46
35.97

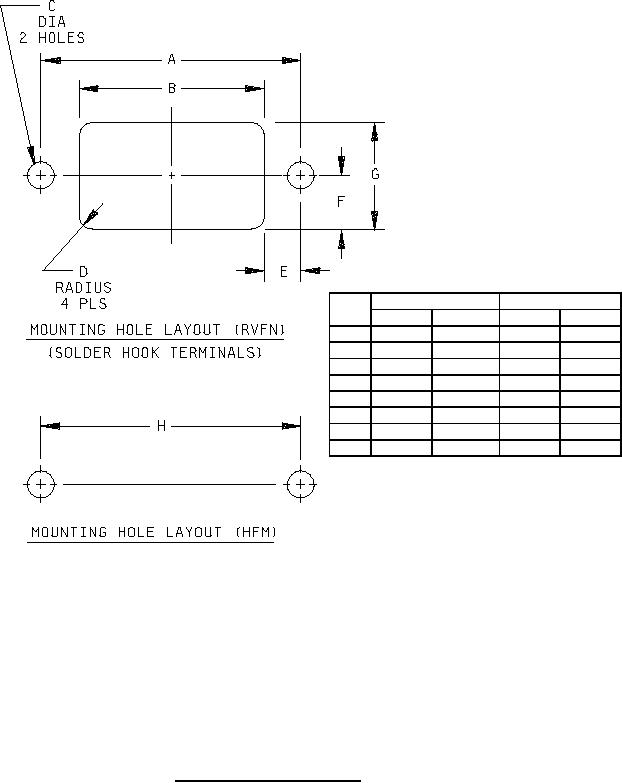

FIGURE 1. Dimensions and configurations - Continued.
