MIL-PRF-83536-10 Relays, Electromagnetic, Established Reliability, Dpdt, Low Lever To 10 Amperes, Permanent Magnet Drive, Hermetically Sealed, All Welded, Transient Suppressed Dc Coils

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11


MIL-PRF-83536/10C
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.290
.310
7.37
7.87
B
.061
.064
1.55
1.63
C
.061
.063
1.55
1.60
D
.260
.280
6.60
7.11
E
.290
.310
7.37
7.87
F
.061
.064
1.55
1.63
G
.260
.280
6.60
7.11

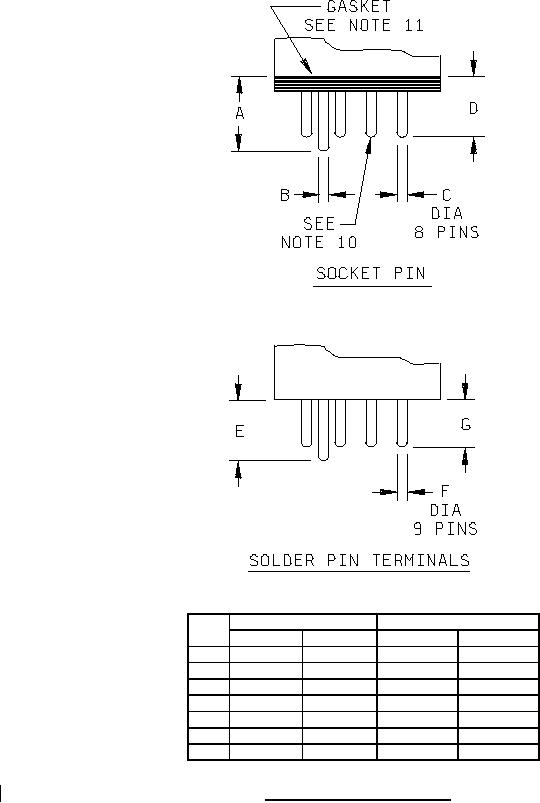

FIGURE 1. Dimensions and configurations - Continued.
