INCH-POUND
MIL-PRF-83536/10C
08 January 2009
SUPERSEDING
MIL-PRF-83536/10B
10 September 2000
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, ESTABLISHED RELIABILITY, DPDT,
LOW LEVEL TO 10 AMPERES, PERMANENT MAGNET DRIVE, HERMETICALLY SEALED,
ALL WELDED, TRANSIENT SUPPRESSED DC COILS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-83536.
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
---
1.025
---
26.03
B
---
1.010
---
25.65
C
.090
.110
2.29
2.79
D
.190
.210
4.83
5.33
E
---
.263
---
6.68
F
---
.525
---
13.33

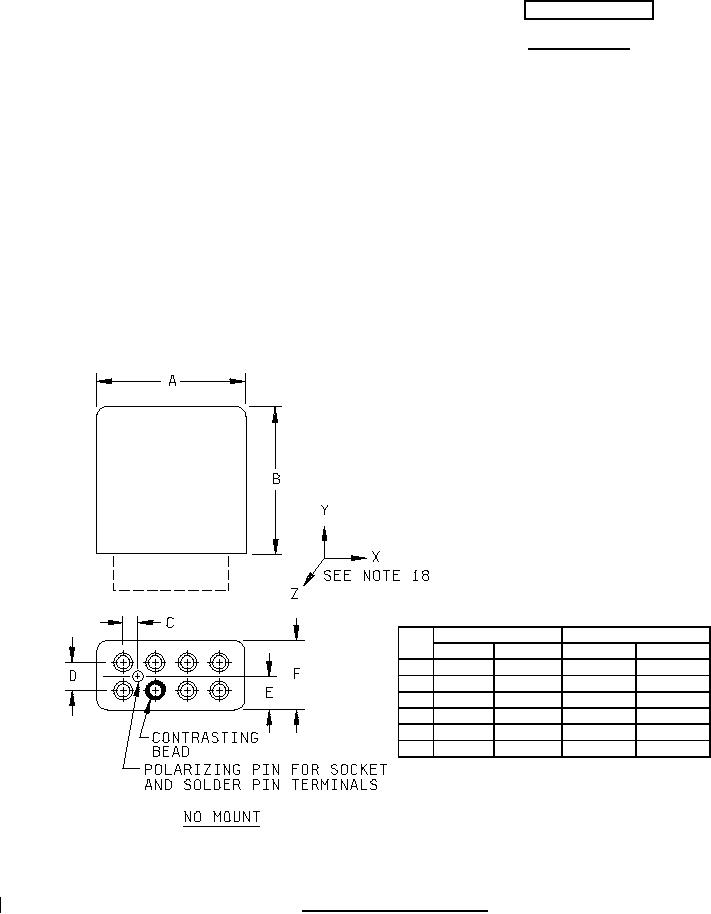

FIGURE 1. Dimensions and configurations.
AMSC N/A
FSC 5945
