MIL-PRF-6106/15E
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.03 (0.76 mm) for two place decimals and ±.010 (0.25 mm) for
three place decimals; and angles ±0.5°.
4. Terminal identification and locations designated by diagram on relay case.
5. Internal contacts shall enable the product to meet the performance requirements of this specification and
shall be approved by the qualifying activity. Preoxidized, silver cadmium oxide contacts have been
considered acceptable.
6. Coil transient voltage limited to ±42 volts referenced to zero volts.
7. Case shall be electrically insulated from mounting surface.
8. Terminal flat and lock washer may be reversed for shipping purposes. Drawing shows proper installation
sequence.
FIGURE 3. Configurations and dimensions (-004) - Continued.

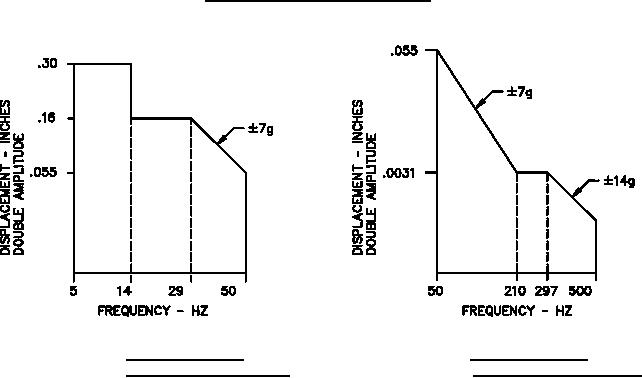

FIGURE 4. Sinusoidal vibration
FIGURE 5. Sinusoidal vibration
low frequency performance.
high frequency performance.
5
