INCH-POUND
MIL-PRF-6106/15E
15 February 2011
SUPERSEDING
MIL-PRF-6106/15D
23 November 2000
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, 50 AMPERES, DC,
SPDT, HERMETICALLY SEALED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall
consist of this specification sheet and the latest issue of MIL-PRF-6106.
mm
Inches
0.13
.005
0.25
.010
1.52
.060
3.30
.130
3.51
.138
3.96
.156
4.17
.164
6.27
.247
6.35
.250
7.11
.280
9.40
.370
12.70
.500
15.88
.625
28.45
1.120
35.56
1.400
47.24
1.860
57.91
2.280
60.33
2.375
69.85
2.750

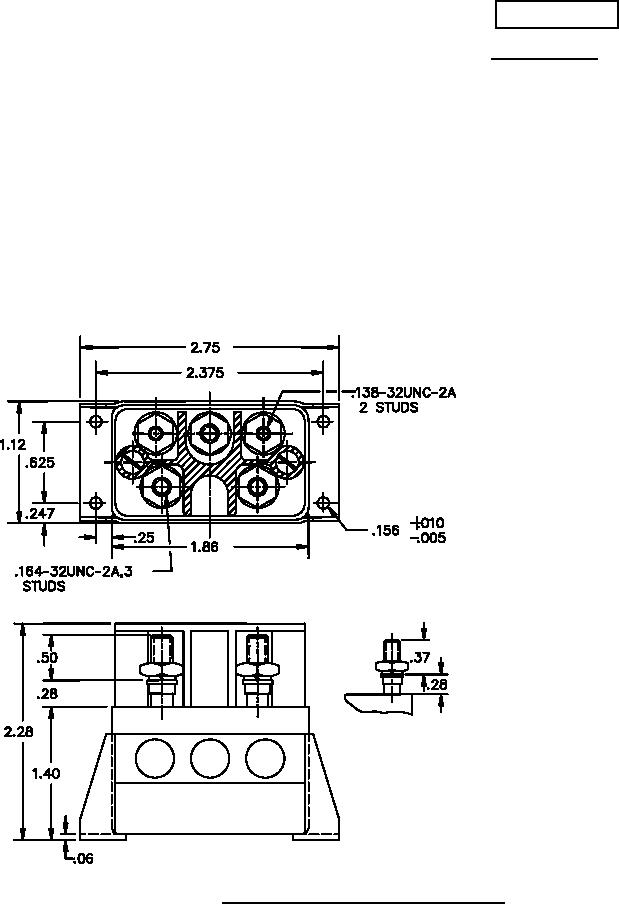

FIGURE 1. Configurations and dimensions (-001 and -002).
AMSC N/A
FSC 5945
