MIL-PRF-6106/15E
Inches
mm
.006
0.15
138
3.51
.164
4.17
.180
4.60
.196
4.98
.250
6.40
.280
7.11
.370
9.40
.500
12.70
1.120
28.15
1.400
35.60
1.860
47.20
2.375
60.33
2.385
60.58
2.810
71.40
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.03 (0.76 mm) for two place decimals and ±.010 (0.25 mm) for
three place decimals.
4. Terminal identification and locations designated by diagram on relay case.
5. Relay shall not operate or be damaged by reverse coil polarity.
6. Coil transient voltage limited to ±42 volts referenced to zero volts.

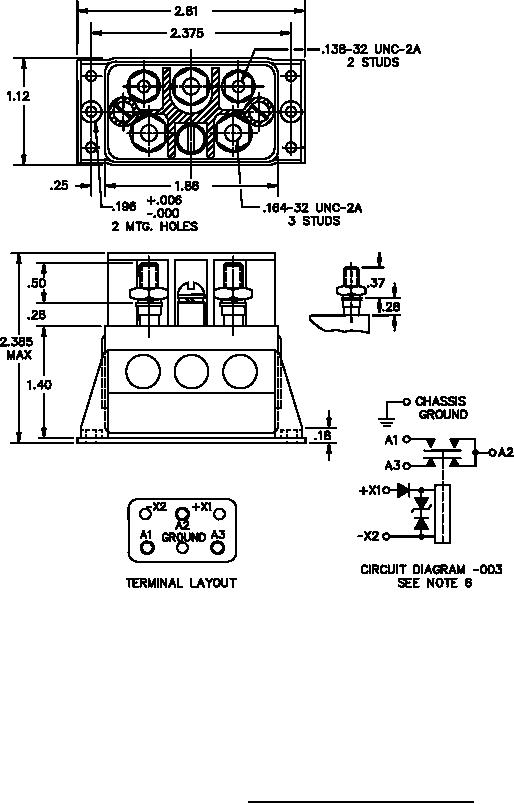

FIGURE 2. Configurations and dimensions (-003).
3
