MIL-PRF-39016/6L
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.125
3.18
.600
15.24
.003
0.08
.137
3.48
.810
20.57
.005
0.13
.187
4.75
.850
21.59
.015
0.38
.190
4.83
1.000
25.40
.020
0.51
.200
5.08
1.062
26.97
.030
0.76
.250
6.35
1.078
27.38
.040
1.02
.310
7.87
1.180
29.97
.096
2.44
.400
10.10
1.320
33.53
.100
2.54
.410
10.41
2.950
74.93
.120
3.05
.450
11.43
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Indicated terminal shall be marked with a contrasting bead.
5. Circuit diagram (including terminal designations) shall be marked on top if legible from the mounted position,
otherwise marking surface is optional.
6. Mounting screw head clearances are based on use of .112 diameter fillister head screws.
7. Coil symbol shall be in accordance with MIL-STD-1285.
8. Mounting surface finish shall be compatible with aluminum (duralumin type) as defined by MIL-STD-889.
9. Finish: Finish shall provide the operational, environmental, and interface characteristics to provide a reliable
interconnect to gold plated contacts. One system for gold plating that may be used is ASTM B488, type 3,
class 1.25, knoop hardness 130 to 240, nickel underplate 50 to 150 microinches thick. The gold plating shall
enable the product to meet the performance requirements of this specification and shall be approved by the
qualifying activity.

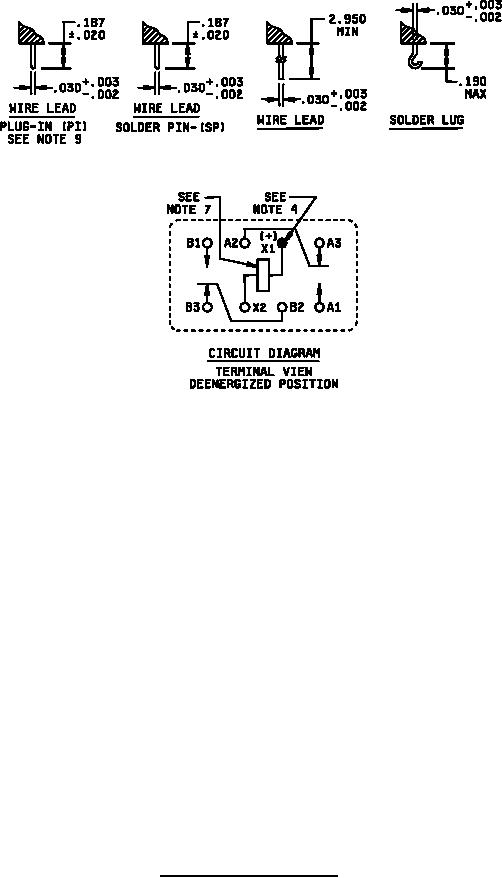

FIGURE 1. Dimensions and configuration - Continued.
