MIL-PRF-39016/48D
Inches
mm
Inches
mm
.002
0.05
.100
2.54
.003
0.08
.158
4.01
.005
0.13
.169
4.29
.018
0.45
.200
5.08
.020
0.51
.300
7.62
.067
1.70
.350
8.90
.083
2.10
.400
10.16
.575
14.60
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

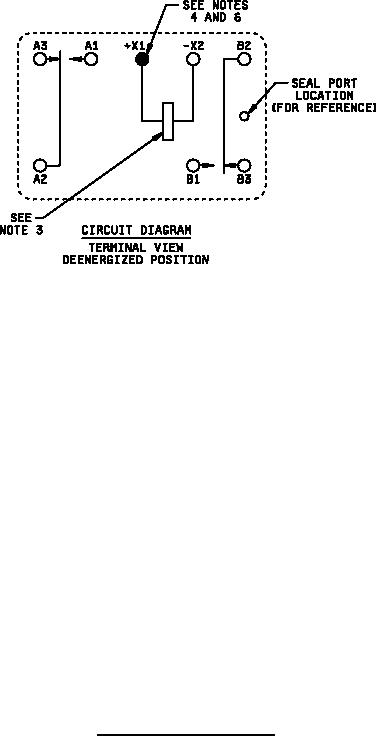

3. Coil symbol is optional per MIL-STD-1285.
4. Indicated terminal X1 shall be identified with contrasting colored bead.
5. Terminal markings are for reference only.
6. To energize relay, apply plus (+) polarity to X1, and minus (-) to X2.
7. Relays shall have plus (+) and minus (-) signs placed on circuit diagram as shown above.
8. An orientation mark (position reference) will be on top of each relay above pin B2.
FIGURE 1. Dimensions and configuration - Continued.
2
