MIL-PRF-39016/38C
Inches
mm
Inches
mm
.001
0.03
.250
6.35
.003
0.08
.300
7.62
.005
0.13
.310
7.87
.020
0.51
.320
8.13
.080
2.08
.450
11.43
.094
2.39
.610
15.49
.096
2.44
.850
21.59
.100
2.54
1.062
26.97
.150
3.81
1.470
37.34
.187
4.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal locating dimensions shown are applicable to all type mounts.
5. The shape of lug terminals is optional.
6. Coil symbol is optional per MIL-STD-1285.
7. X1 terminal shall be identified with contrasting bead.

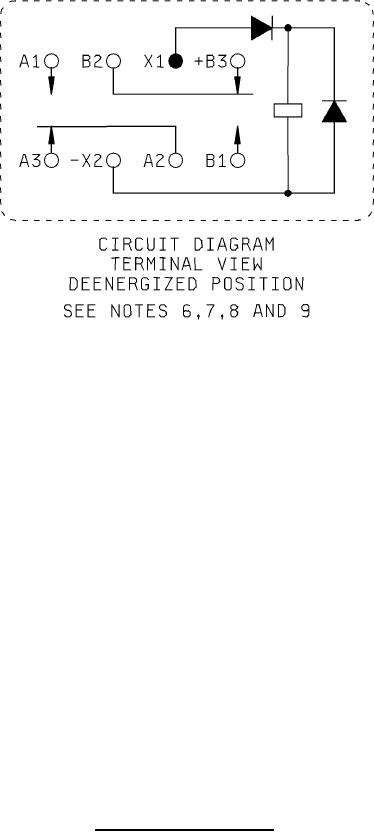

8. Terminal markings A1 and A3 shall appear on the circuit diagram; other terminal markings are for reference
only.
9. Relays shall have a plus sign marked on the circuit diagram as shown.
FIGURE 1. Dimensions and configuration - Continued.
