INCH-POUND
MIL-PRF-39016/37D
2 June 2014
SUPERSEDING
MIL-PRF-39016/37C
5 August 2003
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, ESTABLISHED RELIABILITY, DPDT,
LOW LEVEL TO 2 AMPERES (0.150-INCH TERMINAL SPACING),
WITH INTERNAL DIODE FOR COIL TRANSIENT SUPPRESSION
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification and the latest issue of MIL-PRF-39016.

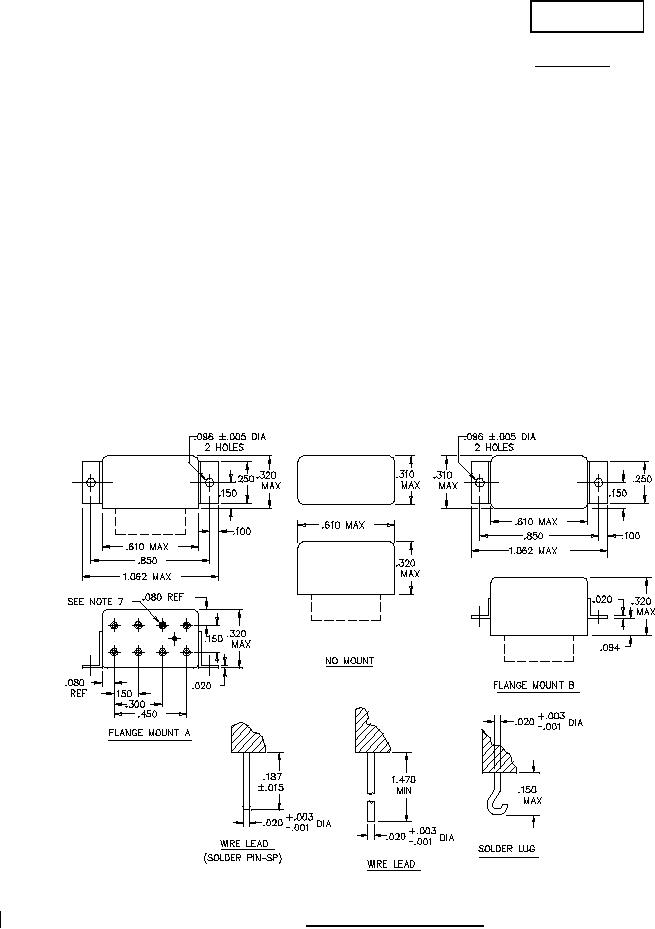

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5945
