MIL-PRF-39016/22E
Inches
mm
Inches
mm
6.35
.250
0.05
.002
10.16
.400
0.08
.003
10.41
.410
0.51
.020
15.24
.600
0.76
.030
20.57
.810
2.54
.100
26.97
1.062
3.05
.120
27.38
1.078
3.18
.125
33.53
1.320
4.75
.187
74.93
2.950
4.83
.190
5.08
.200
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for three place decimals and
± .03 (0.8 mm) for two place decimals.
4. Indicated terminal shall be marked with a contrasting bead.
5. Terminal numbers A1 and A3 shall be marked on the relay.
6. Circuit diagram marked on top if legible from the mounted position, otherwise marking
surface is optional.
7. Mounting screw head clearances based on use on no. 4 fillister head screws.
8. Coil symbols are optional in accordance with MIL-STD-1285.

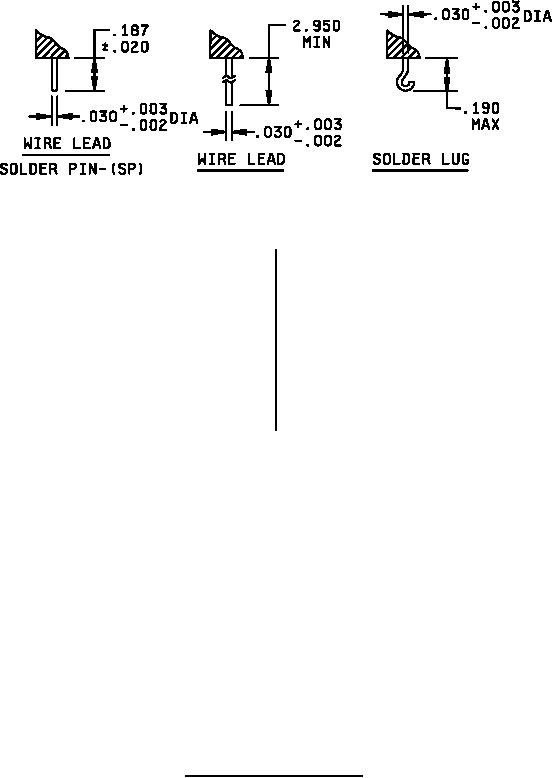

FIGURE 1. Dimensions and configuration - Continued.
