MIL-PRF-39016/15L
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
5. Dimensions and tolerances shown for the bottom view of the spreader mounting pad are for the
center-to -center locations of the holes in the spreader mounting pad.
6. Shape optional within the envelope dimension.
7. Coil symbol optional in accordance with MIL-STD-1285.
8. Relays shall have a plus (+) sign placed on the circuit diagram as shown.
9. Circuit diagram shown on part is the terminal view.

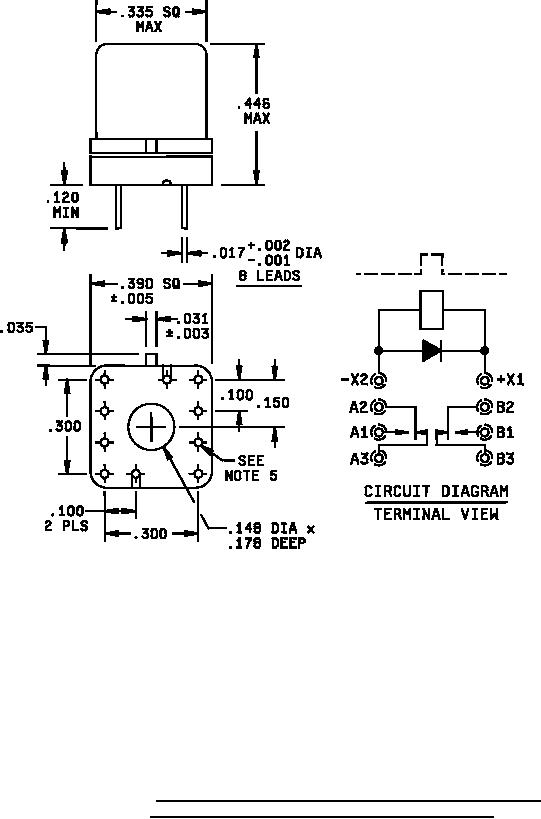

FIGURE 4. Dimensions and configuration relay with spreader mounting pad
(.100 x .300 terminal spacing) attached (square or round).
4
