INCH-POUND
MIL-PRF-39016/15L
20 May 2009
SUPERSEDING
MIL-PRF-39016/15K
3 December 2004
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, ESTABLISHED RELIABILITY, DPDT,
LOW LEVEL TO 1.0 AMPERE WITH INTERNAL DIODE FOR COIL TRANSIENT SUPPRESSION
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the relays described herein
shall consist of this specification sheet and MIL-PRF-39016.
Inches
mm
.001
0.03
.002
0.05
.003
0.08
.017
0.43
.031
0.79
.035
0.89
.200
5.08
.275
6.99
.280
7.11
.335
8.51
.370
9.40
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Relays shall have a plus (+) sign placed on the circuit diagram as shown.
5. Coil symbol optional in accordance with MIL-STD-1285.
6. Circuit diagram shown on part is the terminal view.
7. The grounding pin shown is a noninsulated case ground applicable to -065 through -070 and -089 through
-094 (see table I).

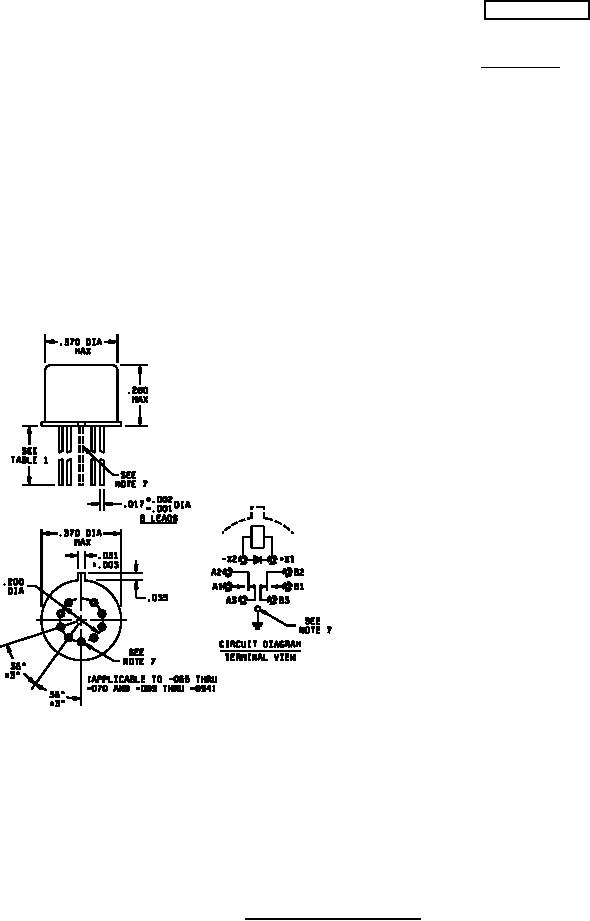

FIGURE 1. Dimensions and configuration.
