MIL-PRF-39016/14E
Inches
mm
Inches
mm
.001
0.03
.150
3.81
.003
0.08
.187
4.75
.005
0.13
.300
7.62
.020
0.51
.320
8.13
.050
1.27
.450
11.43
.080
2.03
.500
12.70
.094
2.39
.610
15.49
.096
2.44
.850
21.59
.100
2.54
1.062
26.97
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, the tolerance is ±.010 (0.25 mm).
4. Terminal locating dimensions shown are applicable to all type amounts.
5. The shape of solder lugs is optional.

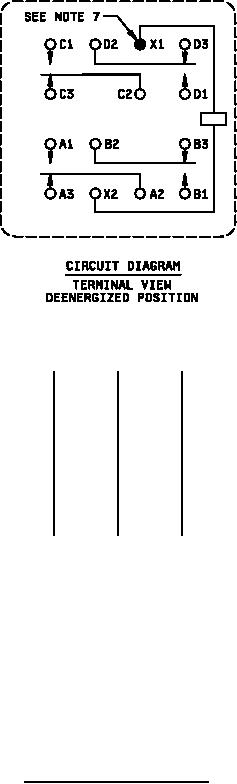

6. Terminal numbers in circuit diagram are for reference only. Numbers do not appear on relay.
7. Indicated terminal shall be identified with a contrasting bead.
8. Coil symbol optional in accordance with MIL-STD-1285.
FIGURE 1. Dimensions and configurations - Continued.
2
