MIL-DTL-83729 Choppers, Electromechanical General Specification ForThis specification covers the general requirements for electromechanical choppers \(see 6.5\), hereinafter referred to as choppers, designed to convert direct current signals to modified square waves of the same frequency as, and bearing a definite phase relationship to, a driving sine or square wave of alternating current.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18


MIL-DTL-83729C

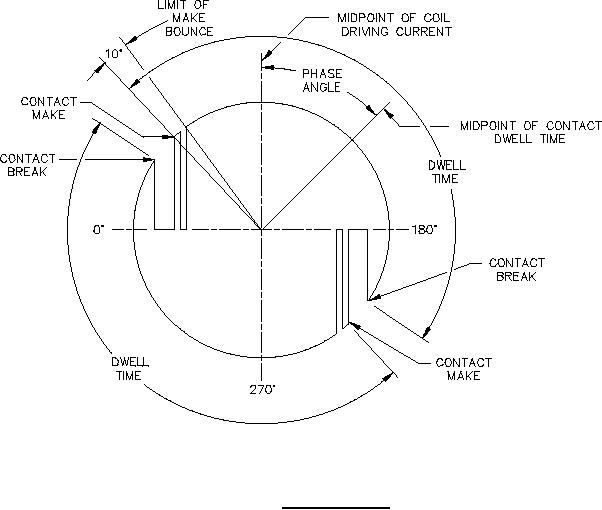

NOTE: Bounce or chatter may occur within the first 10º of dwell time (after make) or the last 10º of dwell time (before
break). During this 10º period an aggregate of 4º maximum is allowed for either bounce or chatter breaks.
FIGURE 3. Waveform display.
11
