INCH-POUND
MS24152J
15 April 2003
SUPERSEDING MS24152H
27 May 1994
DETAIL SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, 3 PDT, 25 AMPERES, TYPE II, NONHERMETICALLY SEALED (MECHANICALLY INTERLOCKED)
INACTIVE FOR NEW DESIGN AFTER 27 MAY
1994. NO SUPERSEDING SPECIFICATION.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

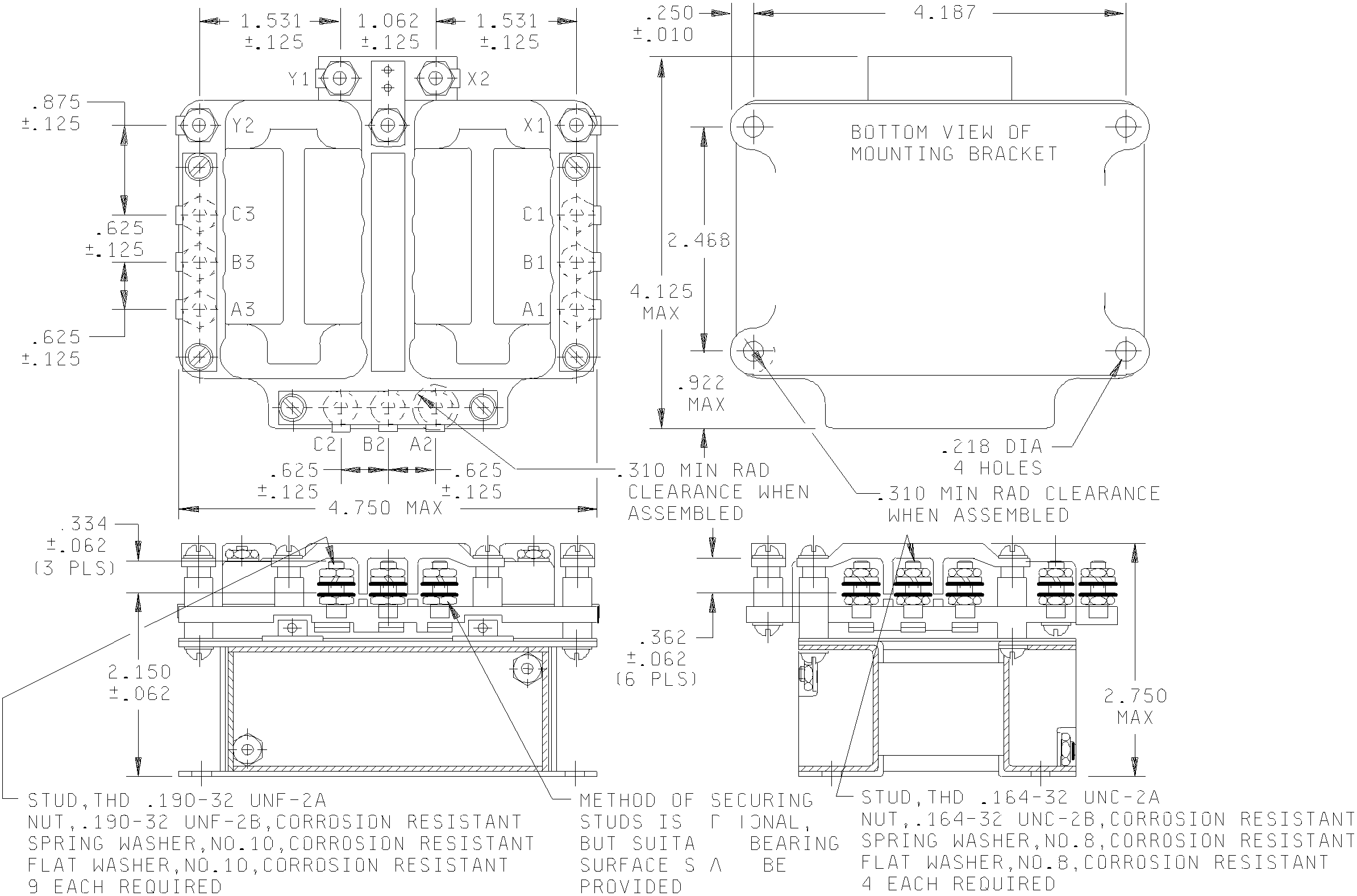

FIGURE 1. Dimensions and configurations.
AMSC N/A 1 of 5 FSC 5945
DISTRIBUTION STATEMENT A. Approved for public release, distribution is unlimited.
