INCH-POUND
MIL-R-83726/23D
19 September 2005
SUPERSEDING
MIL-R-83726/23C(USAF)
22 December 1994
DETAIL SPECIFICATION SHEET
RELAYS, HYBRID, TIME DELAY (ON RELEASE), TYPE IIB, CLASS B, 10 AMPERES, 4PDT, HERMETICALLY SEALED
Inactive for new design after 10 November 1993. No superseding document.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and MIL-PRF-83726.

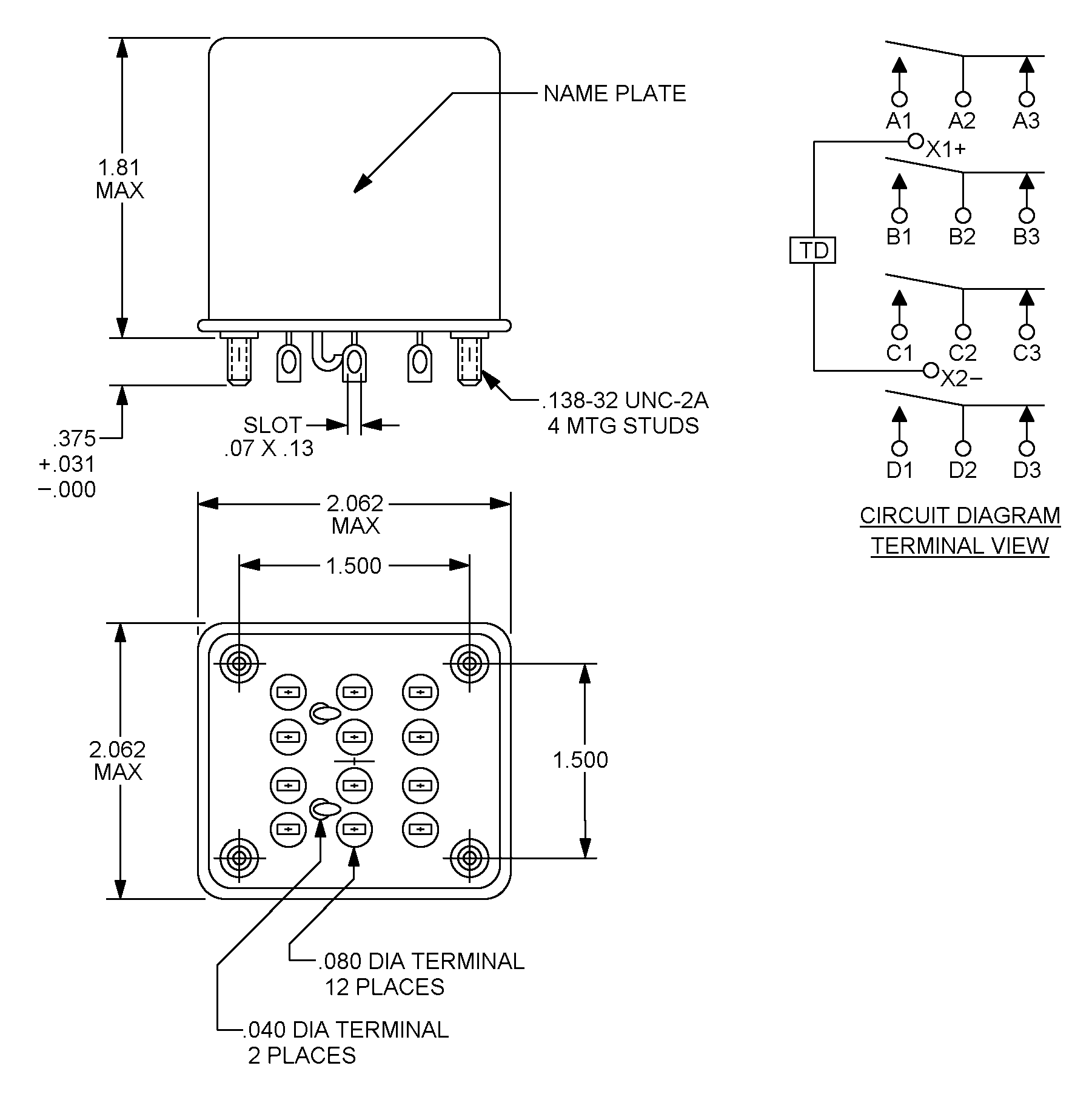

FIGURE 1. Dimensions and configurations.
AMSC N/A FSC 5945
