MIL-R-5757/29E
NOTES:
1. Figures shown next to the capsule and coil terminals refer to the pin arrangement diagrams and are for reference only.
2. Magnetic and electrostatic shielding connection is made to the ground-pin indicated in these diagrams.

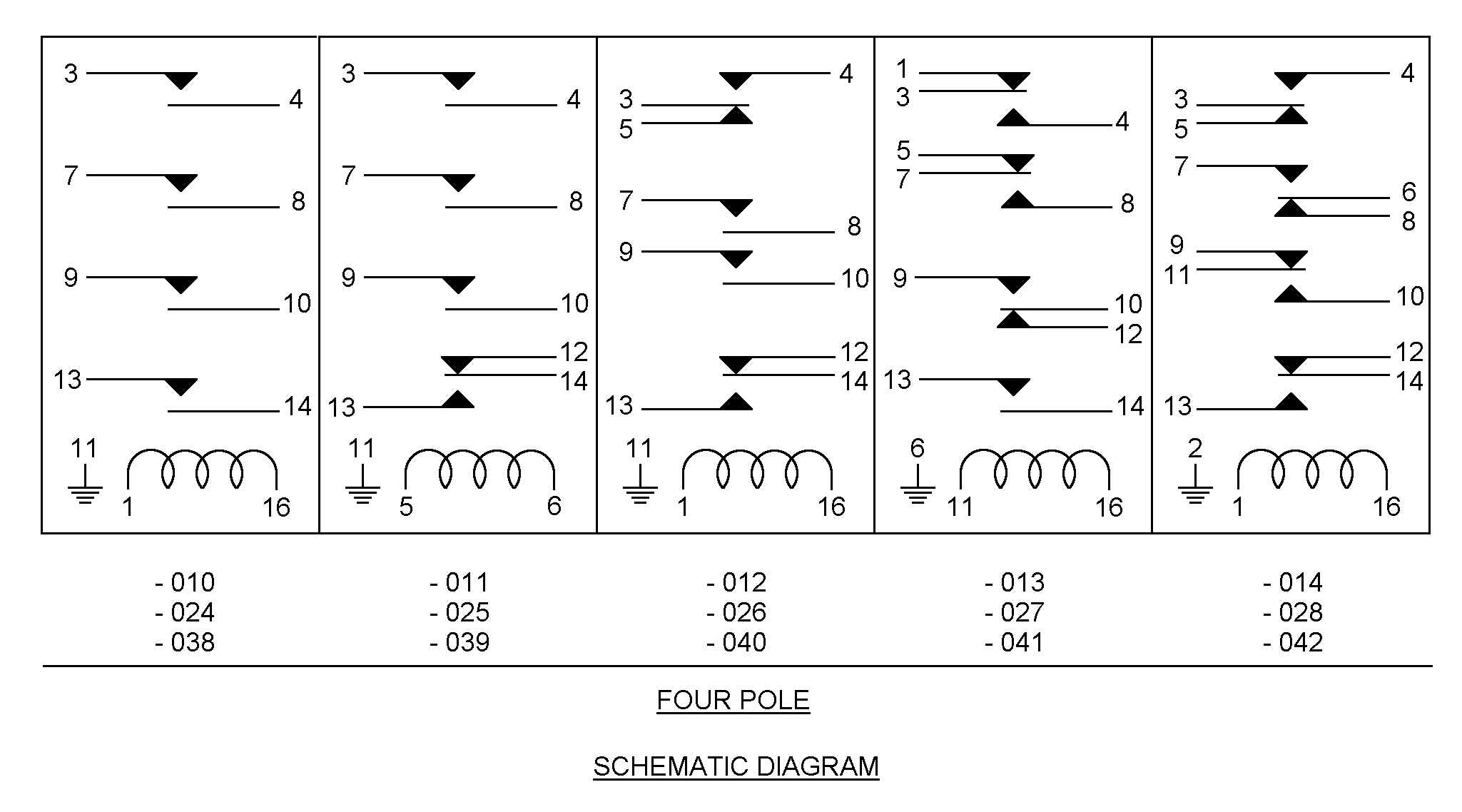

FIGURE 2. Schematic diagrams - Continued.
4
