MIL-R-5757-29 Relays, Electrical, 1 Pst To 4 Pdt Contacts Low-Level To 1/2 Ampere Dry Reed

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11


MIL-R-5757/29E



NOTES:

1.      Dimensions are in inches.

2.      Unless otherwise specified, tolerances are ± .005.

3.      Metric equivalents are given for general information only.

4.        Views shown on configurations B and C are for header configuration only.  See configuration A for case and terminal dimensions.

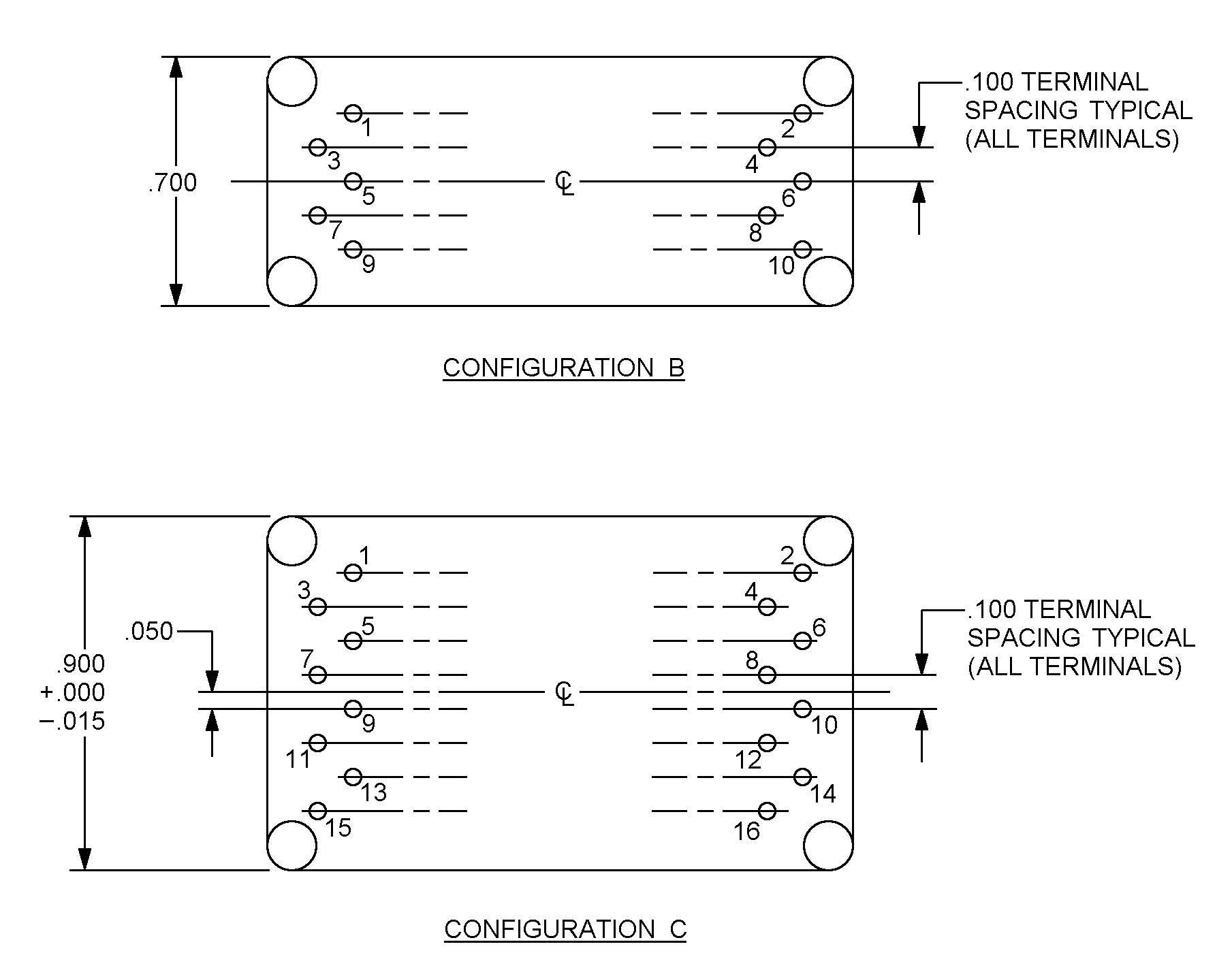

FIGURE 1.  Dimensions and configuration - Continued.
