MIL-PRF-83726/36D
Inches
mm
Inches
mm
.001
0.03
.300
7.62
.002
0.05
.312
7.92
.005
0.13
.625
15.88
.040
1.02
.930
23.60
.050
1.27
1.025
26.04
.062
1.57
1.396
35.46
.150
3.81
1.446
33.73
.156
3.96
1.510
38.35
.200
5.08
1.718
43.64
.270
6.86
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm) for three place decimals and .03 (0.76 mm) for
two place decimals.
4. Terminal numbers shall not appear on the relay header and there shall be a legible circuit diagram on relay
which identifies each terminal location specified.
5. Gasket material: The gasket material shall be of such quality to ensure the relay meets all the
performance requirements of this specification. Silicone rubber gasket in accordance with
SAE- AMS 3332, shore hardness 15 to 35 has been considered acceptable.
6. Terminal composition: The terminal composition shall be of such quality to ensure the relay meets all the
Type 3; underplating: nickel, 50 microinches to 150 microinches thick; has been considered acceptable.
7. Terminal Y2 is not used.

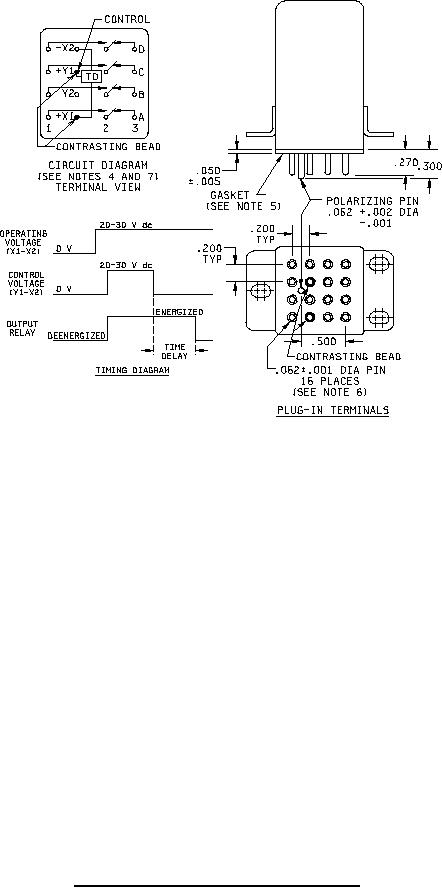

FIGURE 1. Outline dimensions and configuration of relay Continued.
