INCH-POUND
MIL-PRF-83726/28K
04 March 2013
SUPERSEDING
MIL-PRF-83726/28J
14 June 2012
PERFORMANCE SPECIFICATION SHEET
RELAYS, HYBRID, TIME DELAY (ON OPERATE), CLASS B, TYPE I,
HERMETICALLY SEALED, DPDT, 10 AMPERES, FIXED TIME, 0.1 TO 500 SECONDS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-PRF-83726.

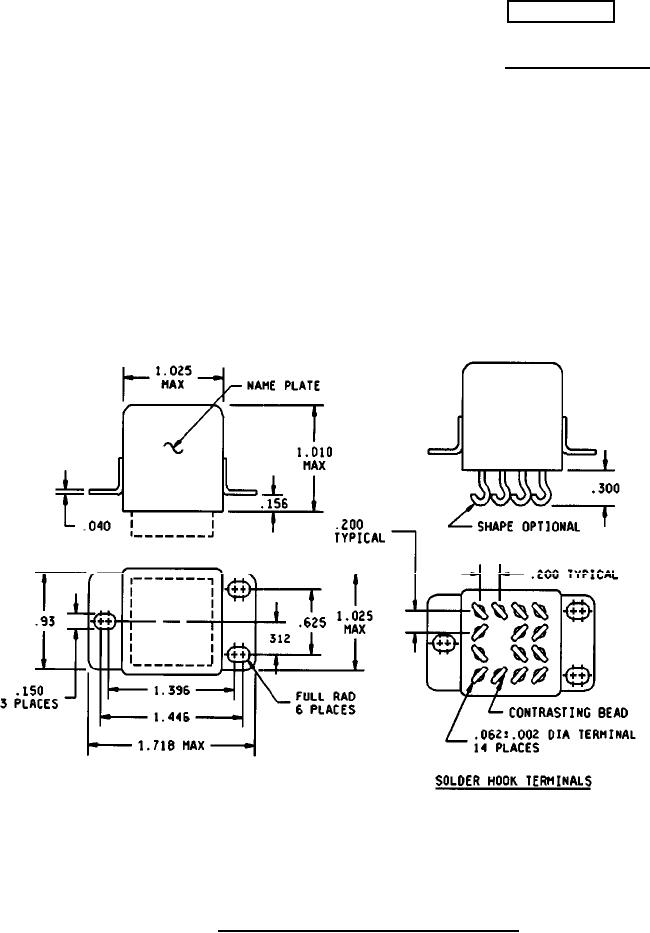

FIGURE 1. Outline dimensions and configuration of relay.
AMSC N/A
FSC 5945
