MIL-PRF-83726/20F

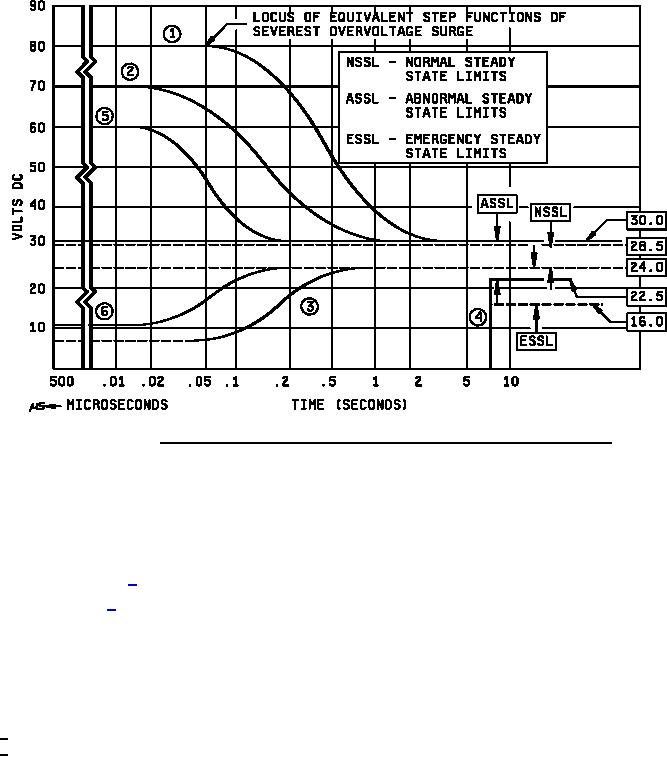

FIGURE 2. Transient surge dc voltage step function loci limits for category B equipment.
REQUIREMENTS:
OPERATING REQUIREMENTS:
Timing action: Delay-on-operate.
Time delay: Fixed, .05 seconds to 500 seconds.
Timing accuracy 1/: +10 percent of the nominal value.
Recycle time 2/: 10 milliseconds.
Power interrupt: The accuracy will not be affected by power interruptions up to 1 millisecond spaced at least 10
milliseconds apart.
______________
1/ The accuracy requirement applies for any combination of operating temperature and voltage.
2/ Recycle time is defined as the maximum time that power must be removed from the input terminals to assure that
the next timing cycle will be completed within the specified timing tolerance. (Units can be recycled during timing
or after time-out.)
