MIL-PRF-6106/41C
Inches
mm
Inches
mm
.001
0.03
.25
6.4
.002
0.05
.375
9.53
.005
0.13
.38
9.7
.03
0.8
.593
15.06
.032
0.81
1.187
30.15
.040
1.02
1.406
35.71
.080
2.03
1.531
38.89
.152
3.86
1.680
42.67
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (0.25 mm).

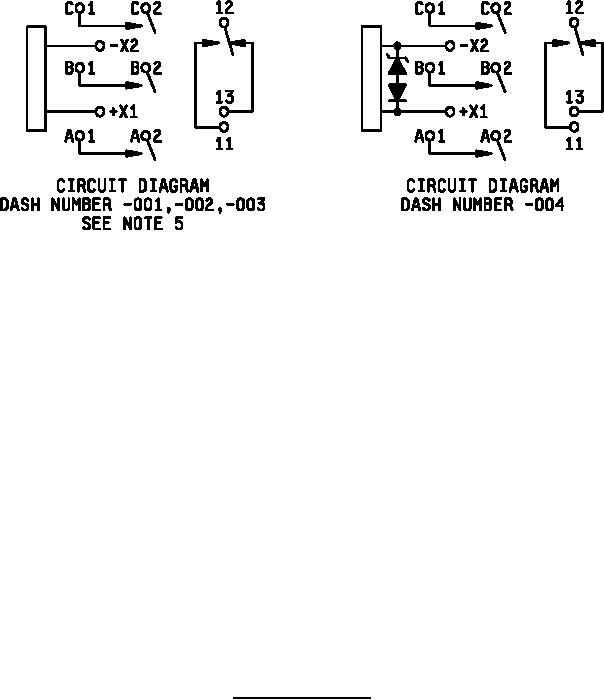

4. Terminal numbers need not appear on the relay header provided there is affixed to the relay a suitable legible
circuit diagram that identifies each terminal location specified.
5. The use of diodes on ac relays is optional. Actual application must be shown on label.
FIGURE 1. Relay, outline drawing - Continued.
2
