MIL-PRF-6106/26G
Inches
mm
Inches
mm
.005
0.13
.375
9.52
.010
0.25
.38
9.7
.06
1.5
.437
11.10
.100
2.54
.44
11.2
.11
2.8
1.91
48.5
.171
4.34
2.000
50.80
.203
5.16
2.44
62.0
.31
7.9
2.50
63.5
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are .010 (0.25mm) for three place decimals and .03 (0.8 mm) for two
place decimals.

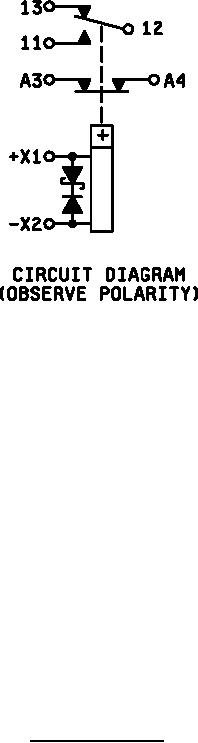

4. Terminal numbers need not appear on the relay header providing there is affixed to the relay a suitable legible
circuit diagram that identifies each terminal location specified.
5. Suppression level - the maximum induced transient voltage (back EMF) shall be 50 volts, referenced to zero
volts.
6. Terminal studs shall be rated at 171C.
FIGURE 1. Relay, outline drawing - Continued.
2
