MIL-PRF-6106/10F
Inches
mm
Inches
mm
Inches
mm
.005
0.13
.250
6.35
1.375
34.92
.010
0.25
.309
7.85
1.74
44.2
.02
0.5
.375
9.52
1.890
48.00
.028
0.71
.440
11.18
1.900
48.26
.032
0.81
.530
13.46
2.000
50.80
.063
1.60
.600
15.24
2.115
53.72
.148
3.76
.625
15.88
2.313
58.75
.186
4.72
1.000
25.4
2.40
61.0
.240
6.10
1.060
26.92
2.500
63.50
3.032
77.01
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .031 (0.79 mm).
4. Weights include cover, barriers, and terminal hardware.
5. When using relay at rated 60 amps, the use of lugs per Burndy part number YAEV6C-G8 or equal is
recommended.
6. Terminal temperature rise under continuous current conditions is 95C maximum.

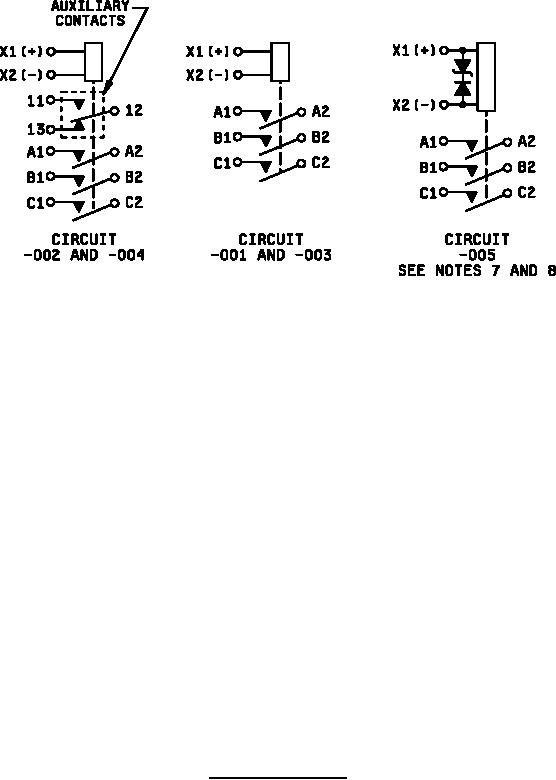

7. Semiconductor devices shall be JANTX or equivalent. Diodes shall have a peak inverse voltage of 800 V dc
minimum.
8. -005 relays shall not operate or be damaged by reversed polarity.
FIGURE 1. Relay, outline drawing - Continued.
