MIL-PRF-39016/47C
Inches
mm
Inches
mm
.002
0.05
.158
4.01
.003
0.08
.169
4.29
.005
0.13
.200
5.08
.018
0.45
.300
7.62
.020
0.51
.350
8.90
.067
1.70
.400
10.16
.083
2.10
.575
14.60
.100
2.54
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

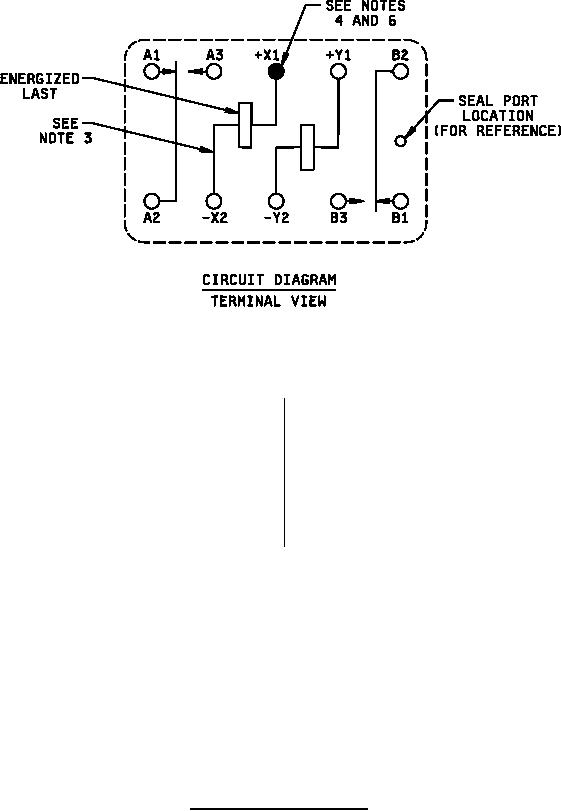

3. Coil symbol is optional in accordance with MIL-STD-1285.
4. Indicated terminal X1 shall be identified with contrasting colored bead. Relays shall have plus (+) and
minus (-) signs placed on circuit diagram as shown above, for X and Y terminals.
5. Terminal markings are for reference only.
6. Energizing the indicated coil (energized last), with the indicated polarity and voltage, shall cause the
relay contacts to assume the position shown.
7. An orientation mark (position reference) will be on top of each relay above pin B2.
FIGURE 1. Dimensions and configuration - Continued.
2
