INCH-POUND
MIL-PRF-39016/42E
15 September 2006
SUPERSEDING
MIL-PRF-39016/42D
20 July 1988
PERFORMANCE SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, ESTABLISHED RELIABILITY, DPDT, LOW LEVEL
TO 1.0 AMPERE WITH INTERNAL DIODE FOR COIL TRANSIENT SUPPRESSION,
TERMINALS .100-INCH GRID PATTERN
(SENSITIVE 60 MILLIWATTS, COIL OPERATE POWER AT 25°C)
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-39016.
Inches
mm
Inches
mm
Inches
mm
8.51
.335
0.79
.031
0.03
.001
9.40
.370
0.89
.035
0.05
.002
9.53
.375
5.08
.200
0.08
.003
6.99
.275
0.43
.017
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Terminal numbers shown above are for reference only. Numbers do not appear on the relay.
5. Relays shall have a plus (+) sign placed on the circuit diagram as shown.
6. Coil symbol optional in accordance with MIL-STD-1285.
7. Circuit diagram shown on part is the terminal view.
8. Dash numbers -057 through -064 shall be supplied with a case grounding pin welded to the header as
shown.

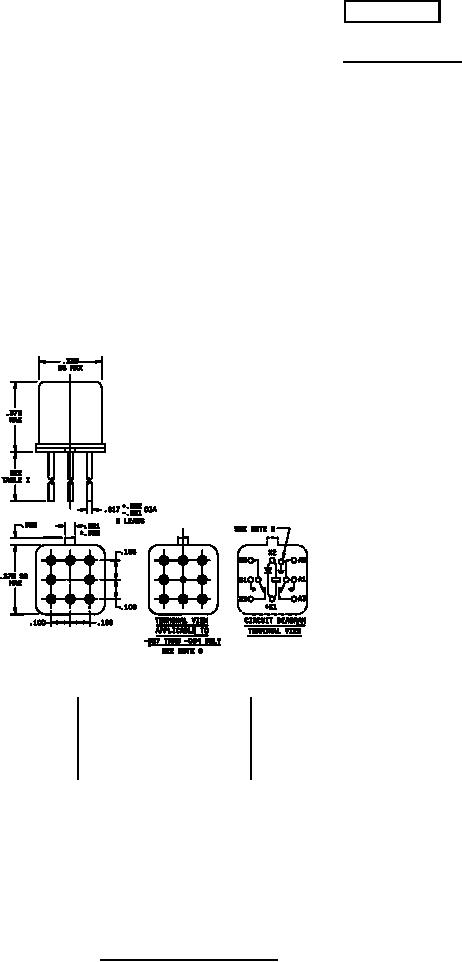

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5945
