MIL-PRF-39016/13K
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.096
2.44
.310
7.87
.003
0.08
.100
2.54
.320
8.13
.005
0.13
.150
3.81
.450
11.43
.020
0.51
.187
4.75
.610
15.49
.080
2.03
.250
6.35
.850
21.59
.094
2.39
.300
7.62
1.062
26.97
1.470
37.34
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is .010 (0.25 mm).
4. Terminal locating dimensions shown are applicable to all type mounts.
5. The shape of lug terminals is optional.

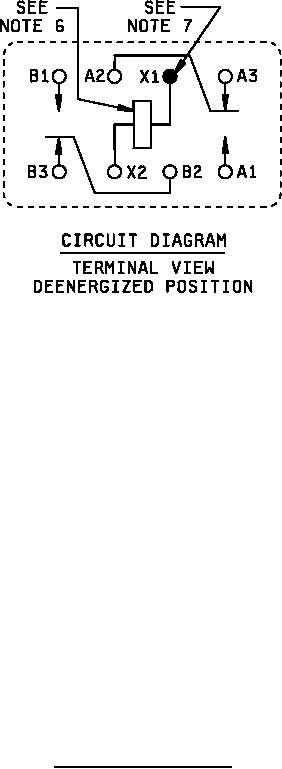

6. Coil symbol optional in accordance with MIL-STD-1285.
7. Indicated terminal shall be identified with a contrasting bead.
8. Terminal markings B1 and B3 shall appear on the circuit diagram as a minimum; other terminal markings are
for reference only.
9. Terminals shall provide the operational, environmental, and interface characteristics to provide a reliable
interconnect to gold-plated contacts. Terminals shall be gold plated. One system for gold plating that may be
used is ASTM B488, type 3, class 1.25 with a nickel underplate of 50 to 150 microinches thick. The gold
plating system shall enable the product to meet the performance requirements of this specification and shall
be approved by the qualifying activity.
FIGURE 1. Dimensions and configuration Continued.
2
