MIL-PRF-28776 Relays, Hybrid, Established Reliability, General Specification ForThis specification establishes the general requirements for relays that use a combination of solid state circuit input elements functioning with an electro-mechanical relay that performs the switching functions associated with control system applications \(see 6.1\). These relays are designed to operate in low and medium power switching circuits with contact ratings up to 1 ampere alternating current \(ac\) or direct current \(dc\). The failure rate level is established at a confidence level of 90 percent for qualification and 60 percent for maintenance of qualification based on 100,000 cycles at +125┬░C under rated load conditions specified herein. Excludes time delay relays. CAUTION: The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay. CAUTION: Pick-up, hold, and dropout voltages are for test purposes only and are not to be used as design criteria. For additional application and caution information, see 6.1.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


.
MIL-PRF-28776F

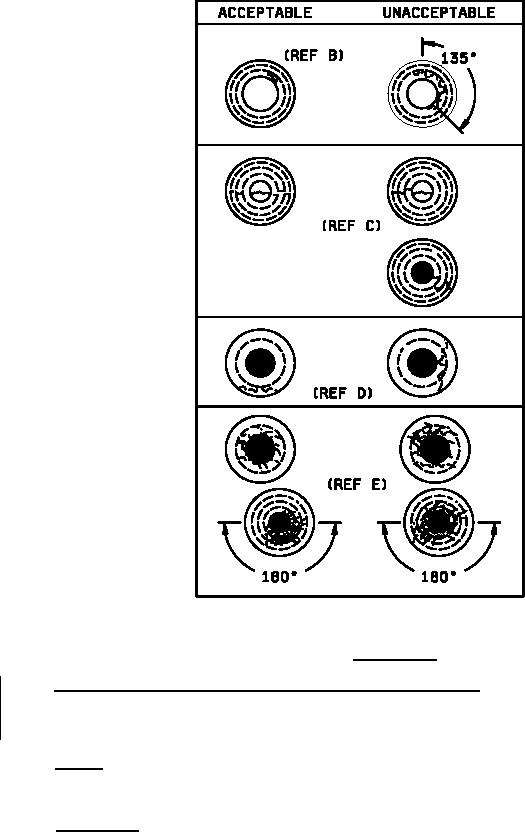

NOTE: The broken lines indicate the division of the radial distance between the terminal and the surrounding header
metal into equal parts, thus creating concentric zones around the terminal.
FIGURE 2. Inspection aid.
3.30 Recycled, recovered, environmentally preferable, or biobased materials. Recycles, recovered,
environmentally preferable, or biobased materials should be used to the maximum extent possible, provided that the
material meets or exceeds the operational and maintenance requirements, and promotes economically advantageous
life cycle costs.
3.31 Pure tin. The use of pure tin, as an underplate or final finish, is prohibited both internally and externally. Tin
content of (product) and solder shall not exceed 97 percent, by mass. Tin shall be alloyed with a minimum of 3
percent lead, by mass (see 6.4).
3.32 Workmanship. The relays shall be fabricated in such a manner as to be uniform in quality, and shall be free
from cracked or displaced parts, sharp edges, burrs, and other defects that will affect life, serviceability, and
appearance.
