INCH-POUND
DETAIL SPECIFICATION SHEET
MS27255K
27 November 2003
SUPERSEDING MS27255H
10 Feb 1989
RELAYS, ELECTROMAGNETIC, 10 AMPERES, 4 PDT TYPE I, SOLDER HOOKS, HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 5 JUNE 1987. NO SUPERSEDING SPECIFICATION. FOR NEW DESIGN, USE MIL-PRF-83536/15, 16, 17.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

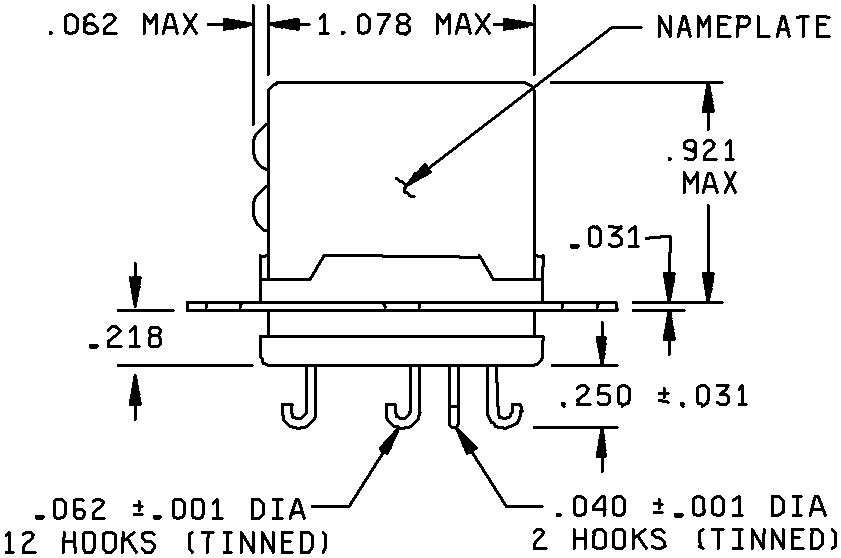

FIGURE 1. Dimensions and configuration.
AMSC N/A 1 of 6 FSC 5945
