INCH-POUND
DETAIL SPECIFICATION SHEET
MS25465F
27 November 2003
SUPERSEDING MS25465E
20 Jan 1989
RELAYS, ELECTROMAGNETIC, 5 AMPERES, 2 PDT, TYPE I, MAGNETIC LATCH, SOLDER TERMINALS, STUD MOUNTED, HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 5 JUN 1987. NO SUPERSEDING SPECIFICATION. (FOR NEW DESIGN USE MIL-PRF-6106/38)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

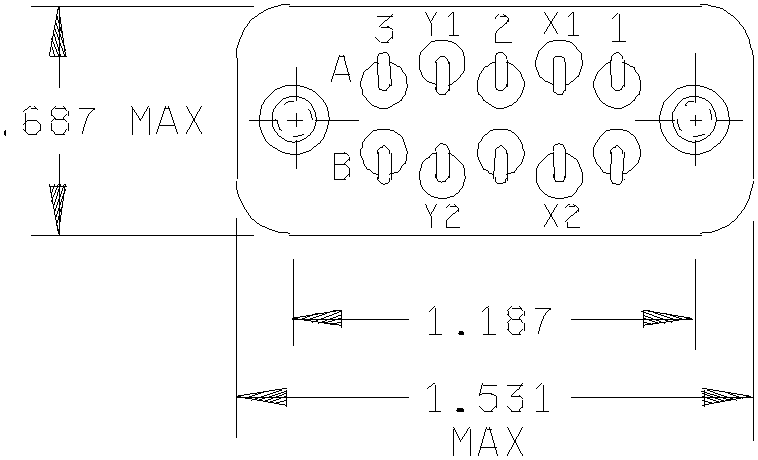

FIGURE 1. Design, dimensions, and circuit diagram.
AMSC N/A 1 of 5 FSC 5945
