MS25327N
Inches |
mm |
Inches |
mm |
.001 |
0.03 |
.290 |
7.37 |
.005 |
0.13 |
.344 |
8.74 |
.008 |
0.20 |
.375 |
9.52 |
.040 |
1.02 |
.435 |
11.05 |
.047 |
1.19 |
.580 |
14.73 |
.062 |
1.57 |
.725 |
18.42 |
.0625 |
1.588 |
.750 |
19.05 |
.072 |
1.83 |
.870 |
22.10 |
.093 |
2.36 |
1.500 |
38.10 |
.145 |
3.68 |
1.531 |
38.89 |
.147 |
3.73 |
1.812 |
46.02 |
.203 |
5.16 |
1.844 |
46.84 |
.210 |
5.33 |
2.187 |
55.55 |
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. The use of diodes on ac relays is optional. Actual application must be shown on label.
5. Pins to be perpendicular to header surface within one degree.
6. Terminal numbers need not appear on relay headers provided there is affixed positively identifies each terminal
location specified herein.
7. In the event of conflict between the text of this standard and the references cited herein, the text of this specification shall take precedence.
8. Referenced Government documents of the issue listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation forms a part of this standard to the extent specified herein.
9. Socket pin terminals shall provide the operational, environmental, and interface characteristics to provide a reliable interconnect to gold-plated contacts. Terminals shall be gold plated. One system for gold plating that
may be used is ASTM 8488, type 3, class 1.25 with a nickel underplate of 50 to 150 microinches thick. The gold plating system shall enable the product to meet the performance requirements of this specification and shall be approved by the qualifying activity.

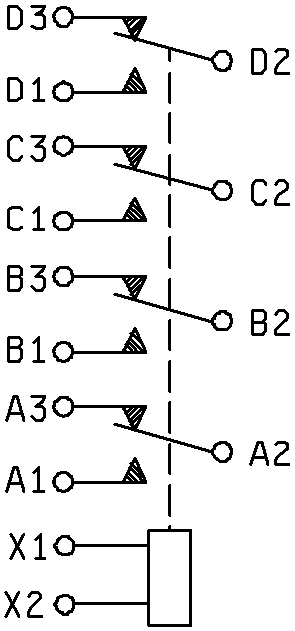

FIGURE 1. Dimensions and configurations - Continued.
2
