MS25270 Relays, Electromagnetic, 5 Amperes, 6 Pdt, Type I, Potted Lead, Hermetically Sealed

Pages 1 - 2 - 3 - 4 - 5

NOTES:

11  Dimensions are in inches.

Inches

.005

mm

0.13

21  Metric equivalents are given for general information only.

.062

1.57

31  Unless otherwise specified, tolerance is ±.010 (0.25 mm).

.125

3.18

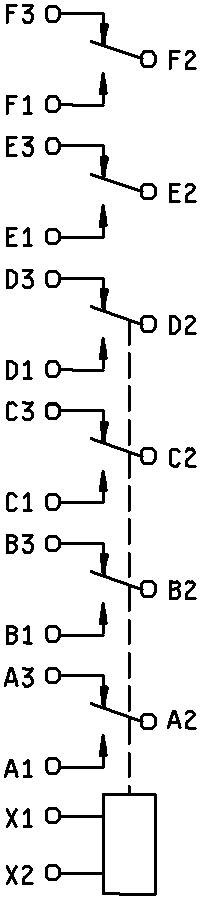

41  Terminal numbers need not appear on relay header provided there is affixed to the

.152

3.86

relay a suitable legible circuit diagram that permanently and positively identifies each

.235

5.97

terminal location specified hereon.

.375

9.53

51  The use of diodes on ac relays is optional.  Actual application must be shown on

.025

15.88

label.

1.100

27.94

61  In the event of conflict between the text of this specification and the references cited herein, the text of this specification shall take precedence.

1.187

1.531

30.15

38.89

2.187

55.55

24.00

609.60

FIGURE 1.  Dimensions and configurations - Continued.

Dash number

MS25270-

Type

Coil

Terminal type

Mounting or mating socket

Max weight in pounds

D1

I

dc

Lead

Stud

.67

A1

I

ac

Lead

Stud

.67
