INCH-POUND
DETAIL SPECIFICATION SHEET RELAYS, ELECTROMAGNETIC, 5 AMPERES,
6 PDT, TYPE I, POTTED LEAD, HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 5 JUN
1987. NO SUPERSEDING SPECIFICATION.
MS25270L
26 June 2012
SUPERSEDING MS25270K
27 November 2003
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

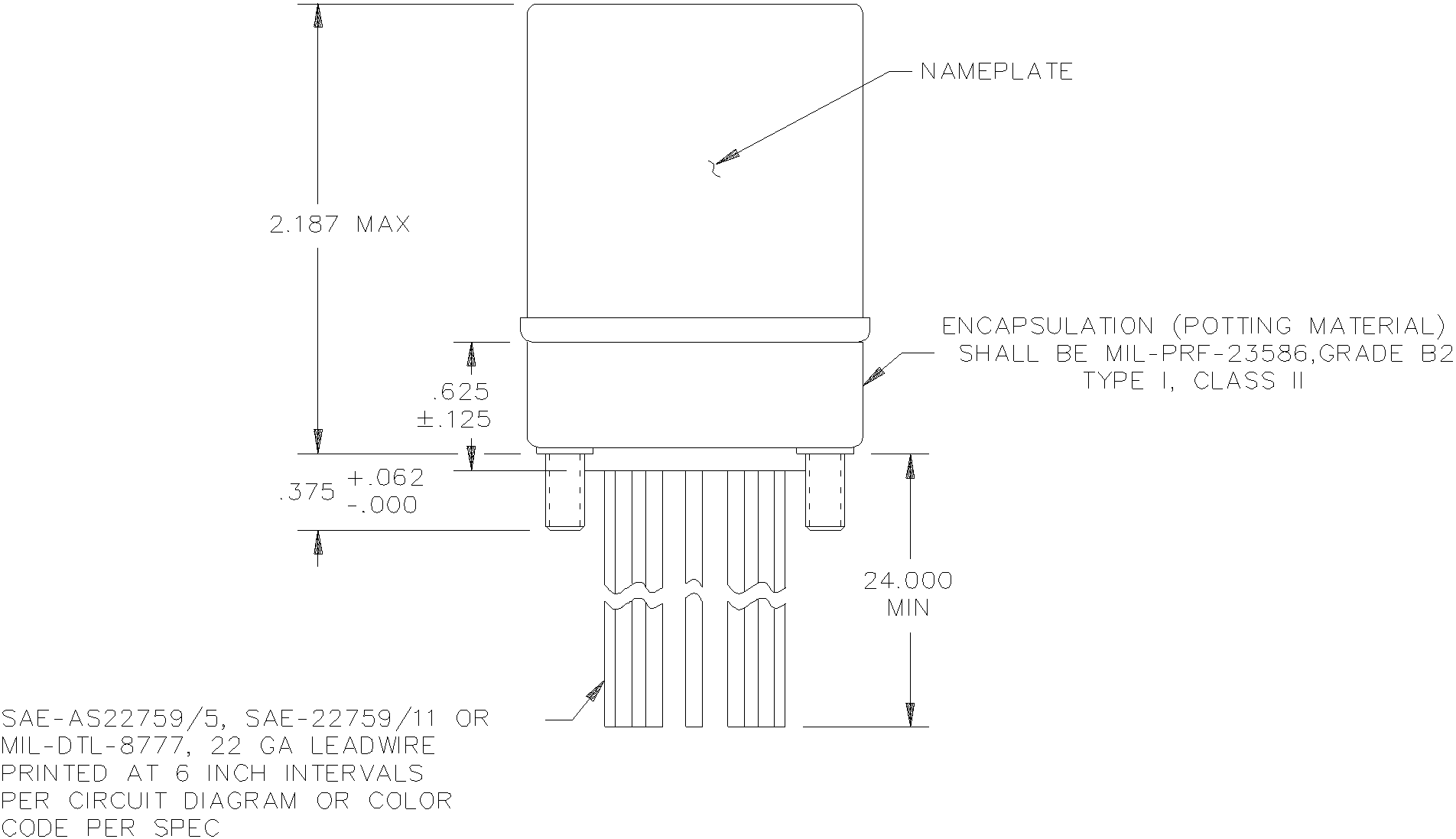

FIGURE 1. Dimensions and configurations.
AMSC N/A FSC 5945
