INCH-POUND
DETAIL SPECIFICATION SHEET RELAY, ELECTROMAGNETIC, 5 AMPERES,
4 PDT, TYPE I, SOLDER HOOK,
HERMETICALLY SEALED
INACTIVE FOR NEW DESIGN AFTER 29 FEBRUARY 2000. NO SUPERSEDING DOCUMENT. FOR NEW DESIGN USE MIL-PRF-83536/5 OR MIL-PRF-83536/6.
MS25267H
27 November 2003
SUPERSEDING MS25267G
5 Jun 1987
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall consist of this specification and the latest issue of MIL-PRF-6106.

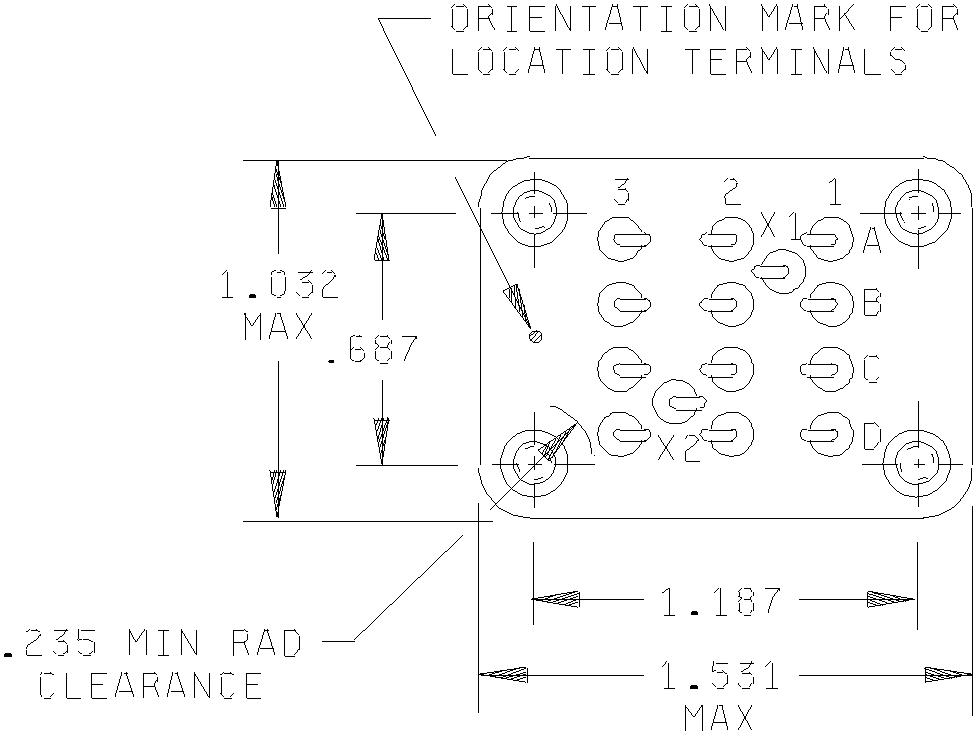

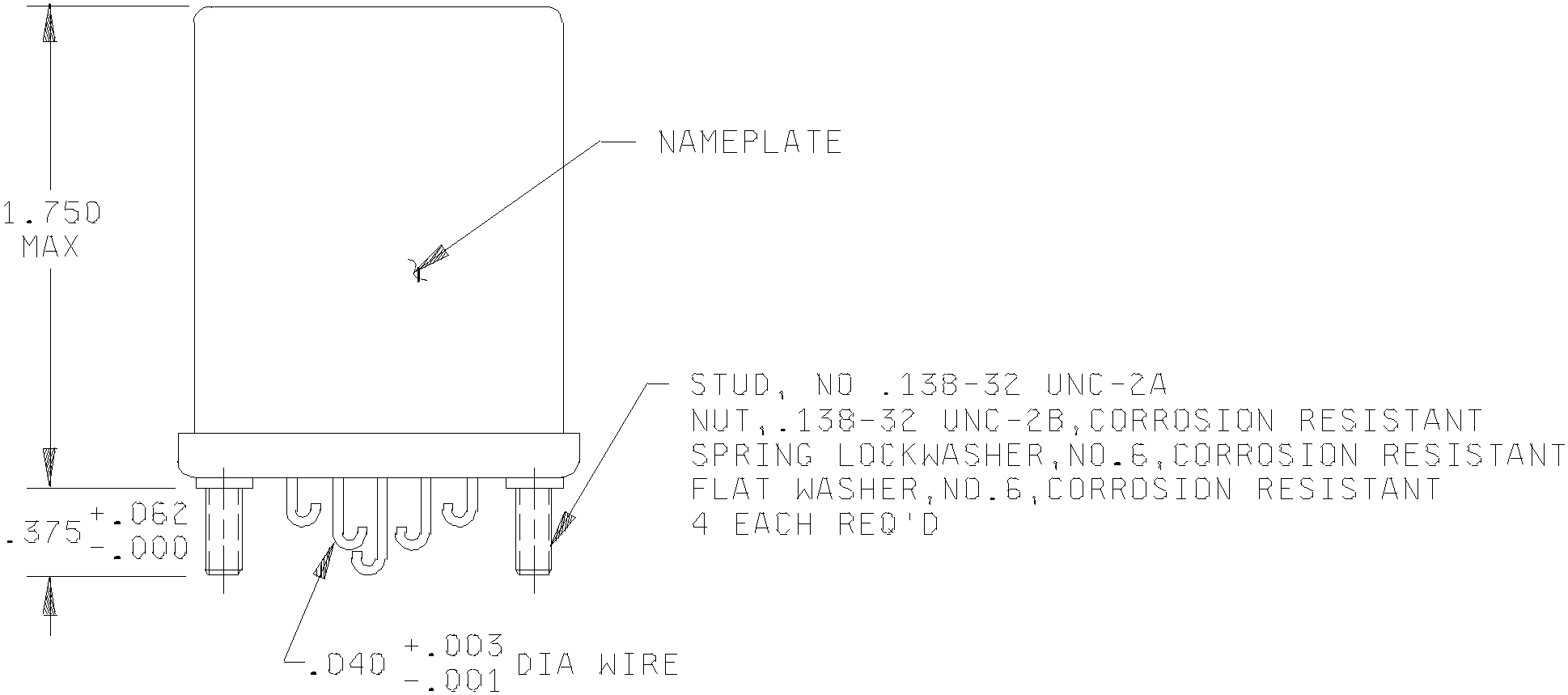

FIGURE 1. Dimensions and configurations.
AMSC N/A 1 of 5 FSC 5945
