MS24166J
Inches |
mm |
Inches |
mm |
.010 |
0.25 |
.938 |
23.83 |
.062 |
1.57 |
1.000 |
25.40 |
.093 |
2.36 |
1.312 |
33.32 |
.125 |
3.18 |
1.875 |
47.63 |
.133 |
3.38 |
1.930 |
49.02 |
.219 |
5.56 |
2.125 |
53.98 |
.250 |
6.35 |
2.188 |
55.58 |
.266 |
6.76 |
2.250 |
57.15 |
.375 |
9.53 |
2.625 |
66.68 |
.438 |
11.13 |
2.750 |
69.85 |
.500 |
12.70 |
NOTES:
1.Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.031 (0.79 mm).
4. An additional flat washer may be used for terminal seat.
5. Terminal temperature rise under continuous current conditions is 95°C. Intermediate current shall be conducted at
71°C.
6. In the event of a conflict between the text of this specification and the references cited herein, this specification shall take precedence.
7. Referenced Government documents of the issue listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation form a part of this document to the extent specified herein.
8. Shape of relay is optional within the envelope dimensions shown.
9. Cadmium or cadmium compounds are prohibited on external hardware. A transition period to non-cadmium hardware is authorized for up to 1 year from the date of this revision.
10. Spring washer on drawing is a spring lock washer.

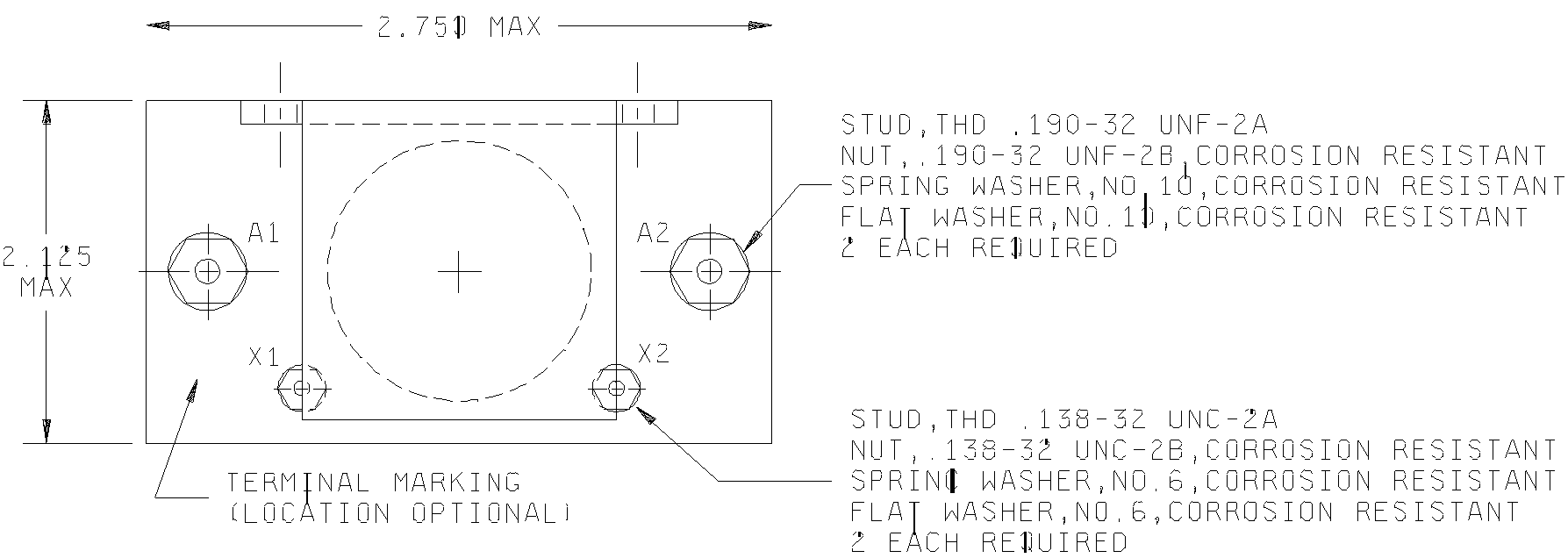

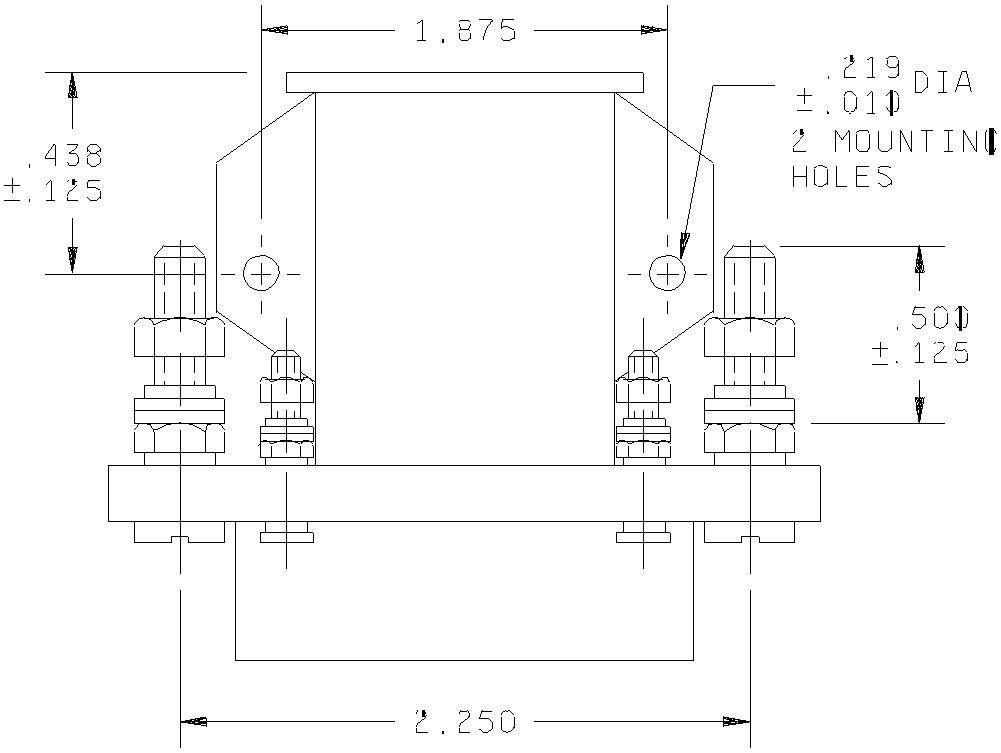

FIGURE 1. Configurations and dimensions - Continued.
2
