INCH-POUND
MIL-R-83726/8E
23 July 2013
SUPERSEDING MIL-R-83726/8D
7 July 2005
MILITARY SPECIFICATION SHEET
RELAYS, HYBRID, TIME DELAY, (ON RELEASE), TYPE IIA, CLASS A, 2 AMPERES, 2PDT, FIXED TIME,
0.100 TO 300 SECONDS
Inactive for new design after 22 July 1992. For new design use MIL-PRF-83726/29.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-PRF-83726.

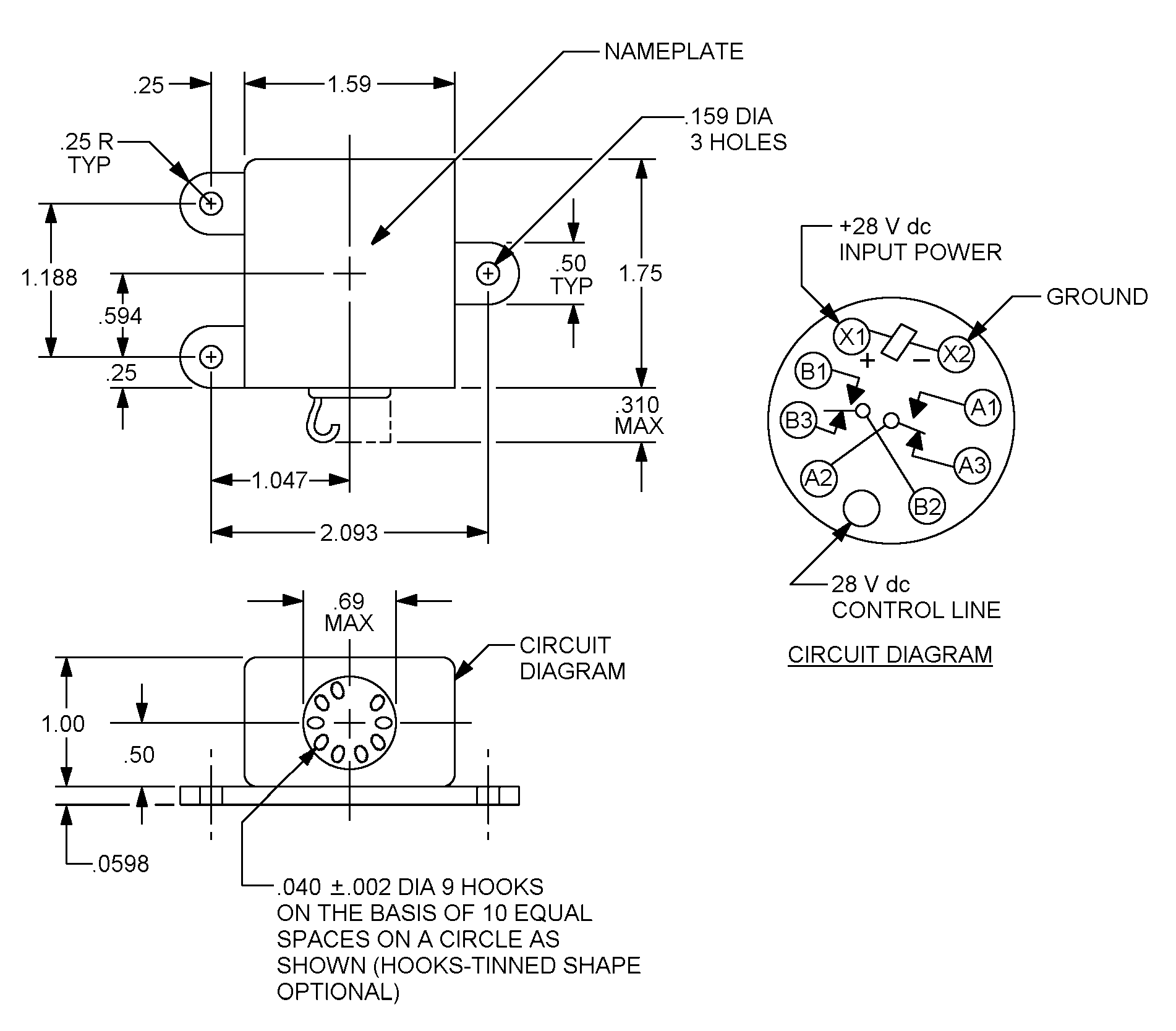

FIGURE 1. Outline dimensions and configuration of relay.
AMSC N/A FSC 5945
