MIL-R-83726/13J
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

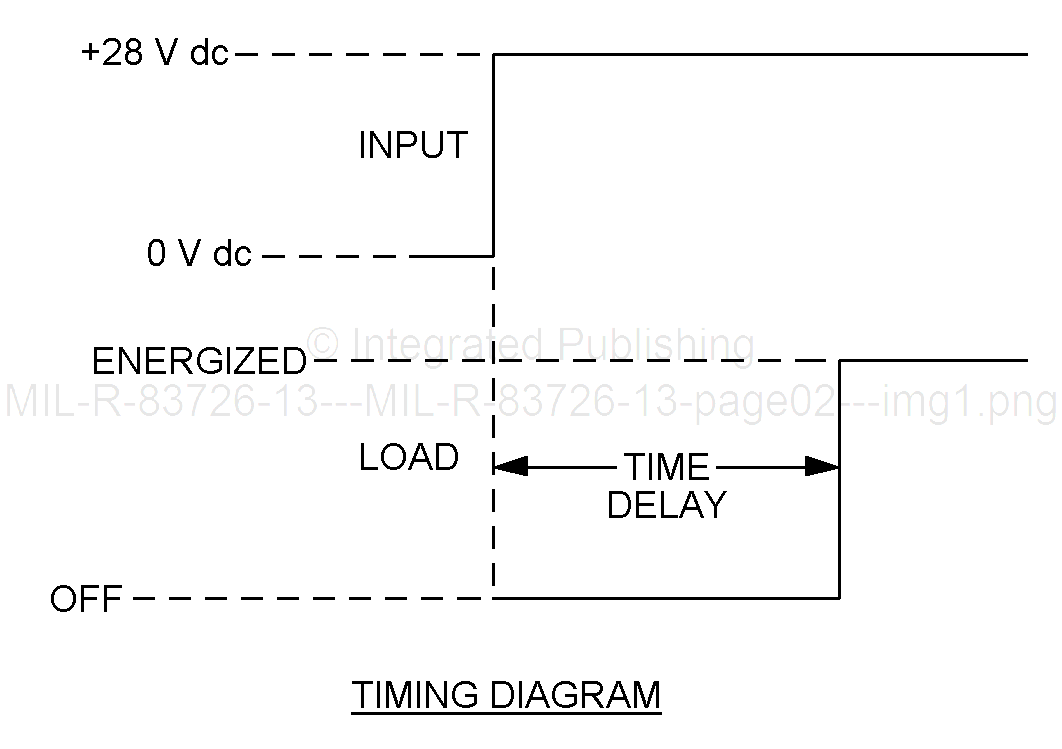

3. Load is connected between B+ and terminal designated LOAD. Delay begins upon application of power to terminals (B+) and (B-). Upon completion of delay period, circuit from load terminal to ground is completed. (B+) and (B-) are shown for reference only; they do not appear on the
relay.
4. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
5. This is an active pin. Do not connect this pin to any portion of the circuit or ground.
FIGURE 1. Outline dimensions and configuration of relay - Continued.
REQUIREMENTS: Operational data:
Timing action: Delay-on-operate.
Timing delay: Fixed time, 50 milliseconds to 600 seconds. See table I.
Timing accuracy: ±10 percent of the nominal timing under all conditions of input voltage and environmental extremes.
Recycle characteristics:
Before time out: A power interruption occurring after the start but before completion of the timing cycle shall be for a duration of 0.5 percent of the nominal time delay or 10 ms, whichever is greater, to ensure a loss in timing no greater than 10 percent.
After time out: A power interruption of 0.5 percent of nominal time delay or 10 ms, whichever is greater, will initiate a new timing cycle with a loss in timing no greater than 5 percent.
