INCH-POUND
MIL-R-5757/7G
12 May 2011
SUPERSEDING MIL-R-5757/7F
30 June 2003
MILITARY SPECIFICATION SHEET
RELAYS, ELECTROMAGNETIC, HERMETICALLY SEALED,
4PDT, LOW LEVEL TO 2 AMPERES
INACTIVE FOR NEW DESIGN AFTER 18 FEBRUARY
1986. FOR NEW DESIGNS USE MIL-PRF-39016/14.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and the latest issue of MIL-R-5757.

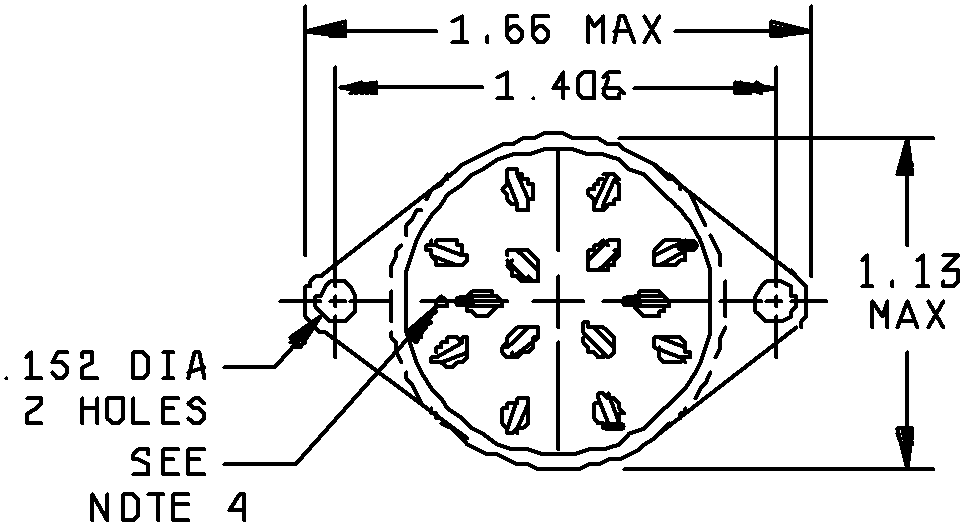

FIGURE 1. Relay - solder lug configuration (M5757/7-001).
AMSC N/A FSC 5945
