MIL-PRF-83536/17A
Inches
mm
Inches
mm
.001
0.03
.140
3.56
.005
0.13
.200
5.08
.010
0.25
.270
6.86
.015
0.38
.313
7.95
.020
0.51
.400
10.16
.040
1.02
.500
12.70
.046
1.17
.800
26.32
.062
1.57
1.025
26.04
.078
1.98
1.250
31.75
.079
2.01
1.310
33.27
.094
2.39
1.910
48.51
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).
4. Permanent magnet drive consists of a permanent magnet with its flux path
switched and combined with the electromagnetic flux.
5. Terminal numbers shall not appear on the header. There shall be affixed to the relay
a suitable legible circuit diagram that identifies each terminal location specified.
6. All terminals shall be gold plated in accordance with MIL-G-45204, type II, class I;
underplating shall be nickel, 50 to 150 microinches thick.
7. Track mount knob, post, and base shall be 303 Cres nickel plated in accordance with
McAir P.S. 13112 or equivalent, 100 microinches thick minimum. The latching pin shall
be 303 Cres passivated or nickel plated in accordance with McAir P.S. 13112 or equivalent,
100 microinches thick minimum.
8. Track mount relay shall be capable of mating with M6106/4 "Bracket and Socket Assembly",
configuration III. The latching pin shall be capable of withstanding an axial pull of 35
pounds, in a direction away from the knob, without any degradation. The rotation of the
knob mechanism shall be restricted such that the latching pins cannot be placed on the
side opposite the M6106/4 bracket cutouts.
9. Indicated terminals shall be identified by a contrasting bead.

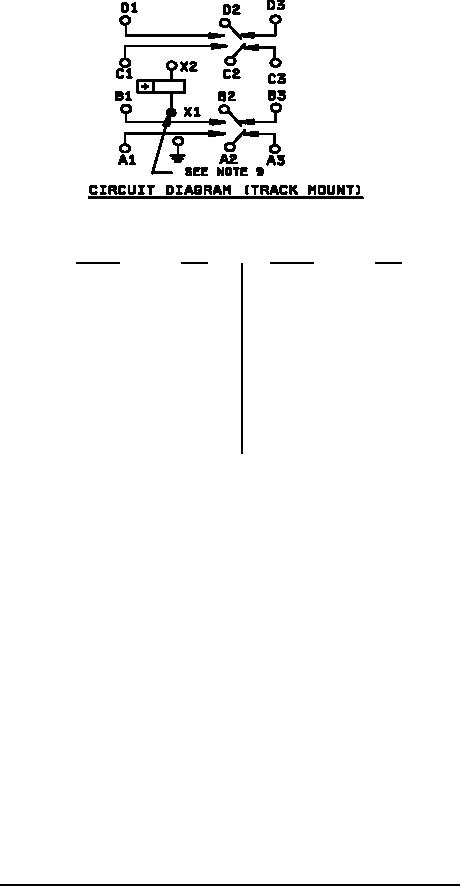

FIGURE 2. Outline dimensions and configuration, track mount (see notes 7 and 8) - Continued.
8
